(09-07) - COUNTERWEIGHT - SOUNDPROOFING - SELF-DETACHING COUNTERWEIGHT SYSTEM

Запчасти Case CX800B (09-07) - COUNTERWEIGHT - SOUNDPROOFING - SELF-DETACHING COUNTERWEIGHT SYSTEM (09) - CHASSIS

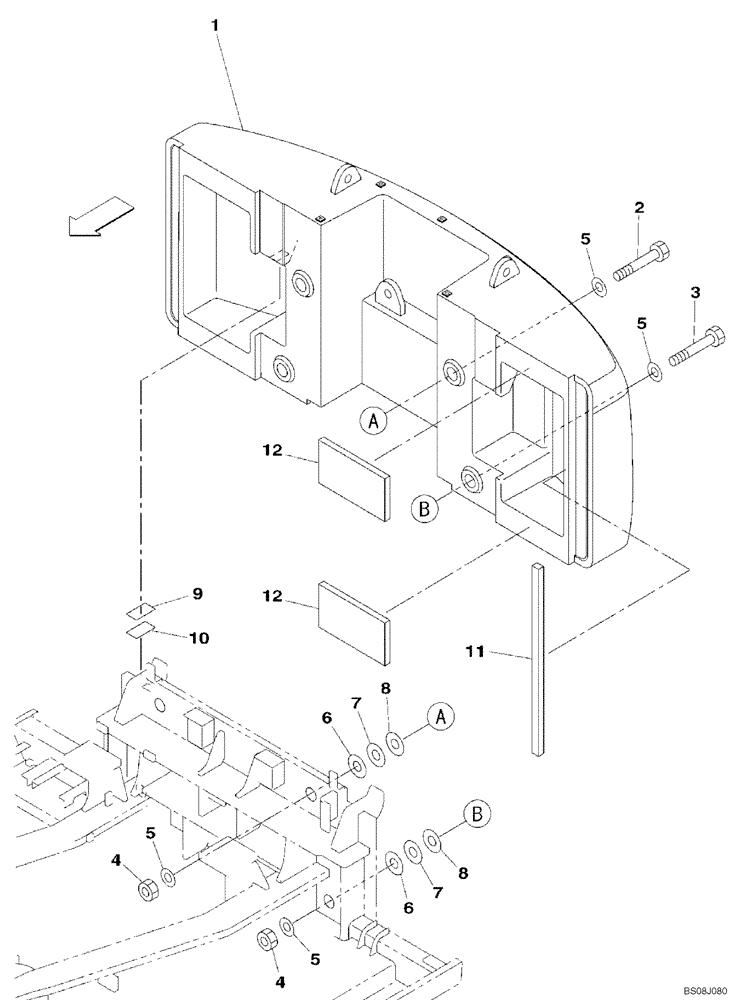

Схема запчастей Case CX800B - (09-07) - COUNTERWEIGHT - SOUNDPROOFING - SELF-DETACHING COUNTERWEIGHT SYSTEM (09) - CHASSIS
4
4
5
2
3
12
1
6
11
5
12
10
5
7
8
6
8
9
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KUB0191

WEIGHT PACKAGE

1шт.

2

KUB10300

BOLT

M42 x 810

2шт.

3

163649A1

BOLT,High Strength, Hex, M42 x 700mm

M42 x 700

2шт.

4

KUB10970

NUT

M42 (Replaced 166UR042VN)

4шт.

5

KUB10960

WASHER

(Replaced 150400A1)

8шт.

6

151020A1

ADJUSTING PLATE

T=2.0 mm

1шт.

7

151023A1

ADJUSTING PLATE

T=3.2 mm

2шт.

8

151028A1

ADJUSTING PLATE

T=4.5 mm

1шт.

9

KUB0110

SHIM,2.3mm Thk

1шт.

10

KUB0111

SHIM,3.2mm Thk

1шт.

11

KUB10950

SEAL

1шт.

12

KUB10940

SEAL

1шт.
