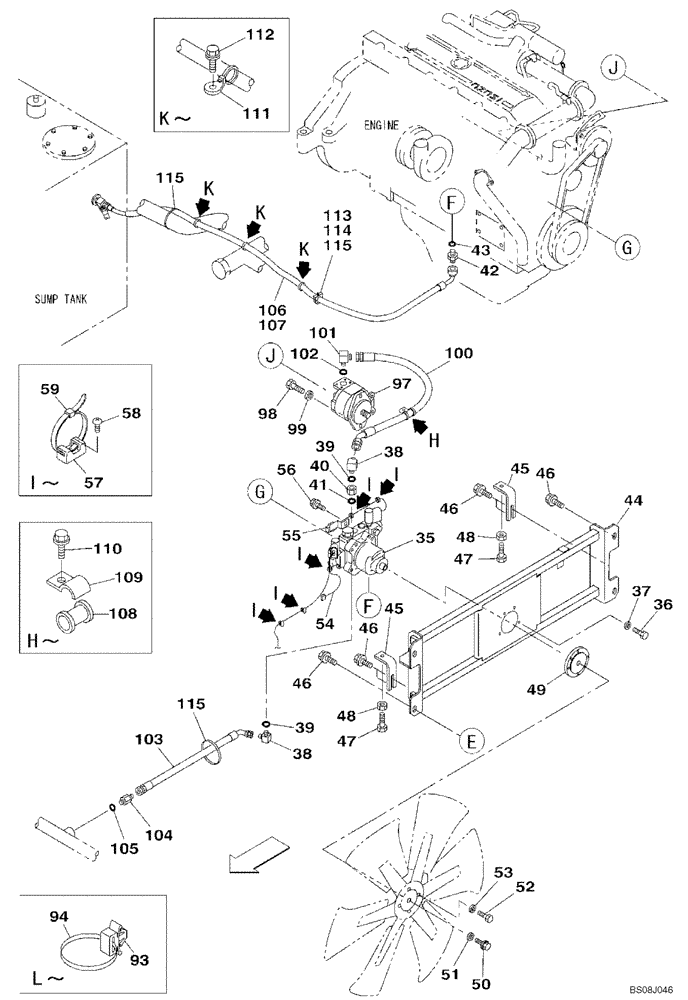

Запчасти Case CX800B (02-05) - ENGINE WATER CIRCUIT (02) - ENGINE

35

KWH0018

ELECTRIC MOTOR

See Fig. 02-36

1шт.

36

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

37

150811A1

WASHER

W12

4шт.

38

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 38

2шт.

39

154503A1

O-RING

2шт.

40

159198A1

ADAPTER

Incl. 40

1шт.

41

154503A1

O-RING

1шт.

42

KRJ1231

ADAPTER

Incl. 42

1шт.

43

154475A1

O-RING

1шт.

44

KWH10160

SUPPORT

1шт.

45

KWH0043

SUPPORT

2шт.

46

166348A1

BOLT

M16 x 45

8шт.

47

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

48

829-1416

NUT,M16, Cl 10

2шт.

49

KWH0044

HUB

1шт.

50

KWH0045

BOLT

M10 x 45

1шт.

51

KWH0046

WASHER

W10

1шт.

52

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

53

150409A1

WASHER

W M10

4шт.

54

KWR10010

WIRE HARNESS

1шт.

55

KHR3748

COLLAR

1шт.

56

167518A1

BOLT

M8 x 16

1шт.

57

150860A1

COLLAR

5шт.

58

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

5шт.

59

150496A1

MOUNTING CLIP

250 mm

5шт.

97

KWH0019

HYDRAULIC PUMP

See Figure 02-07

1шт.

98

132R014Y035R

BOLT

M14 x 1.5 x 35

2шт.

99

150418A1

WASHER

M14

2шт.

100

KWH0047

HYDRAULIC HOSE,19.00 mm ID x 1070.00 mm

1шт.

101

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 100

1шт.

102

154503A1

O-RING

1шт.

103

KWH0048

HYDRAULIC HOSE,19.00 mm ID x 710.00 mm

1шт.

104

KAJ2917

ADAPTER

Incl. 103

1шт.

105

154503A1

O-RING

1шт.

106

KTJ1004

HYDRAULIC HOSE,12.70 mm ID x 2450.00 mm

2250 mm

1шт.

107

158065A1

PLASTIC-RUBBER TUBE

2000 mm

1шт.

108

KHJ2023

HOSE CLAMP

1шт.

109

KHJ2025

CLAMP

1шт.

110

166052A1

BOLT

M10 x 25

1шт.

111

KHR2584

CLAMP

3шт.

112

KHJ1215

BOLT,Spcl

M8 x 25

3шт.

113

150860A1

COLLAR

1шт.

114

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

115

150496A1

MOUNTING CLIP

250 mm

1шт.
