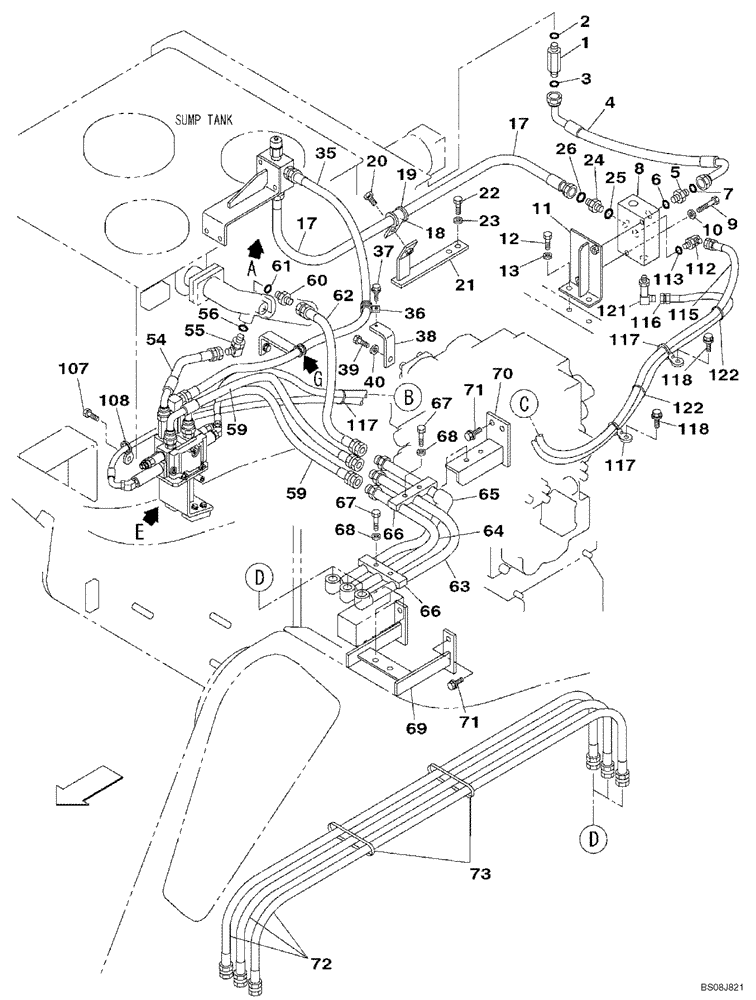

Запчасти Case CX800B (08-82) - HYDRAULIC CIRCUIT - SMALL FLOW (08) - HYDRAULICS

1

KHJ1495

ADAPTER

Incl. 2

1шт.

2

154503A1

O-RING

1шт.

3

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

4

KUJ10800

HYDRAULIC HOSE

1шт.

5

KHJ1348

ADAPTER

Incl. 6

1шт.

6

154503A1

O-RING

1шт.

7

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

8

KHJ1473

VALVE

See Fig. 08-86

1шт.

9

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

2шт.

10

150409A1

WASHER

2шт.

11

KWJ10790

SUPPORT

1шт.

12

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

13

150811A1

WASHER

2шт.

17

KUJ10790

HYDRAULIC HOSE,1460.00 mm

1шт.

18

KHJ2023

HOSE CLAMP

1шт.

19

KHJ2025

CLAMP

1шт.

20

166347A1

BOLT,Sems, M10 x 30mm

1шт.

21

KUJ10820

SUPPORT

1шт.

22

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

23

150811A1

WASHER

2шт.

24

KHJ1348

ADAPTER

Incl. 25

1шт.

25

154503A1

O-RING

1шт.

26

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

35

KUJ10780

HYDRAULIC HOSE,1930.00 mm

1шт.

36

KHJ2451

FIXING BRACKET

2шт.

37

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

38

KWJ10820

SUPPORT

1шт.

39

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

1шт.

40

150811A1

WASHER

1шт.

54

KAJ4760

HYDRAULIC HOSE

1шт.

55

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 56

1шт.

56

154503A1

O-RING

1шт.

59

KUJ10730

HYDRAULIC HOSE,500.00 mm

2шт.

60

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 61

1шт.

61

154503A1

O-RING

1шт.

62

KAJ4092

HYDRAULIC HOSE

1шт.

63

KUJ10850

HYD TUBE

1шт.

64

KUJ10860

HYD TUBE

1шт.

65

KUJ10870

HYD TUBE

1шт.

66

167233A1

COLLAR

2шт.

67

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

68

150811A1

WASHER

4шт.

69

KUJ10830

SUPPORT

1шт.

70

KUJ10840

SUPPORT

1шт.

71

166352A1

BOLT

4шт.

72

KUJ10760

HYDRAULIC HOSE

3шт.

73

150071A1

MOUNTING CLIP

2шт.

107

KHR2584

CLAMP

1шт.

108

KHJ1215

BOLT,Spcl

1шт.

112

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 113

1шт.

113

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

115

159007A1

HOSE

1шт.

116

158130A1

HOSE,6.3mm ID x 1350mm L

3350 mm

1шт.

117

KHR2584

CLAMP

5шт.

118

KHJ1215

BOLT,Spcl

5шт.

121

KHJ1178

ELBOW

1шт.

122

150071A1

MOUNTING CLIP

380 mm

6шт.
