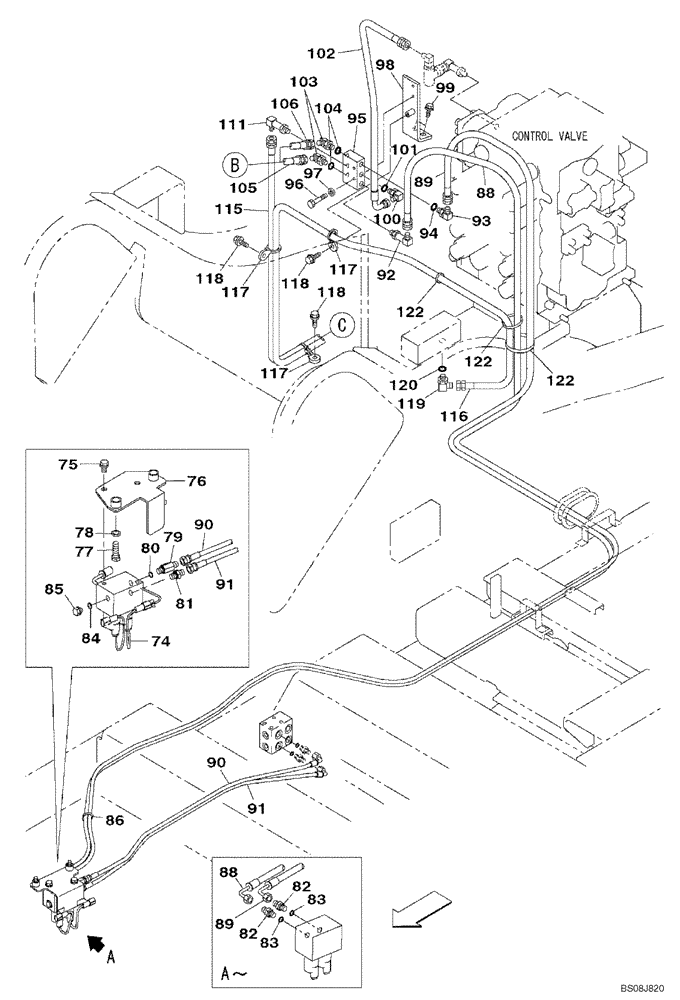

Запчасти Case CX800B (08-81) - HYDRAULIC CIRCUIT - SMALL FLOW (08) - HYDRAULICS

74

KHJ14000

VALVE SECTION

See Fig. 08-38

1шт.

75

166351A1

BOLT,Sems, M10 x 20mm

2шт.

76

KHJ15190

SUPPORT

1шт.

77

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

78

150409A1

WASHER

2шт.

79

162554A1

FITTING

Incl. 80

1шт.

80

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

81

161841A1

HYD CONNECTOR

1шт.

82

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

2шт.

83

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

84

159002A1

PLUG

1шт.

85

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

86

150496A1

MOUNTING CLIP

1шт.

88

KHJ20860

HOSE

5650 mm

1шт.

89

KHJ20850

HOSE

5550 mm

1шт.

90

KHJ2088

HOSE

850 mm

1шт.

91

KHJ2088

HOSE

850 mm

1шт.

92

KHJ1178

ELBOW

1шт.

93

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 94

1шт.

94

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

95

KHJ17110

VALVE

1шт.

96

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

2шт.

97

153081A1

WASHER

2шт.

98

KWJ10870

SUPPORT

1шт.

99

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

100

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 101

1шт.

101

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

102

159044A1

HOSE ASSY.

1шт.

103

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 104

2шт.

104

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

105

152276A1

HOSE,63mm ID x 550mm L

1шт.

106

159019A1

HOSE ASSY.

1шт.

111

KHJ1178

ELBOW

1шт.

115

159007A1

HOSE

1шт.

116

158130A1

HOSE,6.3mm ID x 1350mm L

3350 mm

1шт.

117

KHR2584

CLAMP

5шт.

118

KHJ1215

BOLT,Spcl

5шт.

119

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 120

1шт.

120

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

122

150071A1

MOUNTING CLIP

380 mm

6шт.
