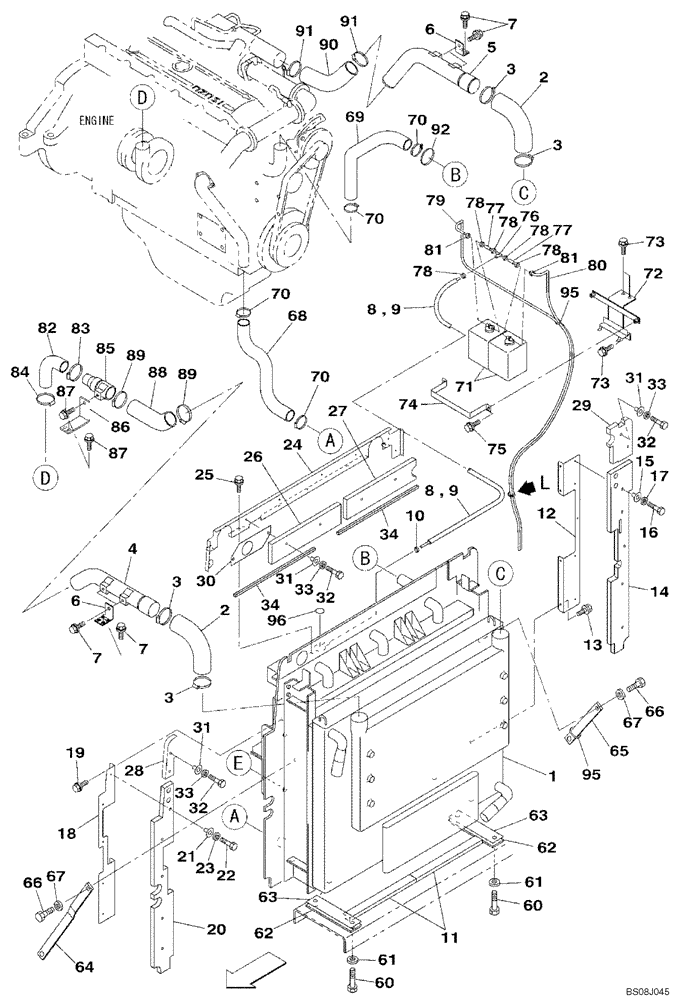

Запчасти Case CX800B (02-04) - ENGINE WATER CIRCUIT (02) - ENGINE

1

KUH10040

RADIATOR

See Figure 02-06

1шт.

2

KWH0028

AIR FLEXIBLE

2шт.

3

KHH0412

COLLAR

4шт.

4

KWH0011

AIR CHANNEL

1шт.

5

KUH10060

AIR DUCT

1шт.

6

KUH10220

SUPPORT

4шт.

7

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

12шт.

8

161495A1

HOSE

1шт.

9

150402A1

TUBE,13 mm ID, 17.5 mm OD, 1300 mm Length

1300 mm

1шт.

10

165951A1

CLAMP

1шт.

11

KUH10180

SEAL

2шт.

12

KWH0059

SUPPORT

1шт.

13

166345A1

BOLT

M8 x 16

4шт.

14

KWH0054

SEAL

1шт.

15

KHH0358

RETAINER

5шт.

16

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

5шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

18

KWH0060

SUPPORT

1шт.

19

166345A1

BOLT

M8 x 16

4шт.

20

KUH10450

SEAL

1шт.

21

KHH0358

RETAINER

5шт.

22

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

5шт.

23

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

24

KUH10210

SUPPORT

1шт.

25

166345A1

BOLT

M8 x 16

4шт.

26

KUH10170

SEAL

1шт.

27

KUH10460

SEAL

1шт.

28

KUH10190

SEAL

1шт.

29

KUH10201

SEAL

1шт.

30

KWH10050

RUBBER PAD

1шт.

31

KHH0358

RETAINER

8шт.

32

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

8шт.

33

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

34

KWH10040

SEAL

2шт.

60

102R020Y055R

BOLT

M20 x 55

4шт.

61

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

W20

4шт.

62

153209A1

SHIM

1шт.

63

153208A1

SHIM

1шт.

64

KWH0063

STAY

1шт.

65

KWH0064

STAY

1шт.

66

102R020Y040R

BOLT

M20 x 40

4шт.

67

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

W20

4шт.

68

KWH0007

LARGE HOSE

HOSE,LARGE

1шт.

69

KWH0008

LARGE HOSE

HOSE,LARGE

1шт.

70

165795A1

COLLAR

4шт.

71

KHH10850

RESERVOIR, COOLANT E

2шт.

72

KUH10240

SUPPORT

1шт.

73

166352A1

BOLT

M12 x 30

4шт.

74

KUH10250

BRACKET

1шт.

75

166352A1

BOLT

M12 x 30

2шт.

76

KHH10370

HYD CONNECTOR

1шт.

77

KHH10340

HOSE,50.00 mm

2шт.

78

165951A1

CLAMP

5шт.

79

KHH0427

HOSE

2250 mm

1шт.

80

157814A1

HOSE

2000 mm

1шт.

81

165952A1

MOUNTING CLIP

2шт.

82

KWH0009

AIR FLEXIBLE

1шт.

83

164968A1

COLLAR

1шт.

84

164967A1

COLLAR

1шт.

85

KWH10020

AIR CHANNEL

1шт.

86

KUH10230

SUPPORT

1шт.

87

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

88

KWH10030

AIR FLEXIBLE

1шт.

89

KHH0411

COLLAR

2шт.

90

KWH0010

AIR FLEXIBLE

1шт.

91

KHH0411

COLLAR

2шт.

92

161100A1

MOUNTING CLIP

1шт.

93

KHR10220

MOUNTING CLIP

1шт.

94

150496A1

MOUNTING CLIP

250 mm

1шт.

96

KHP1407

WARNING DECAL

1шт.
