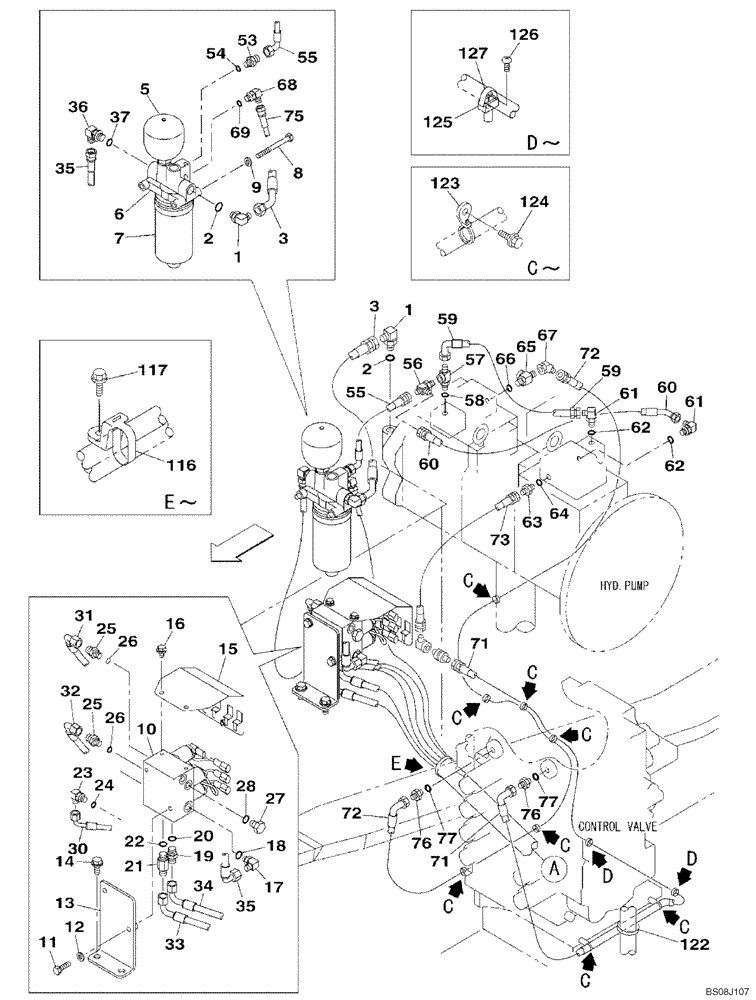

Запчасти Case CX800B (08-55) - HYDRAULIC CIRCUIT - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

1

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 2

2шт.

2

150539A1

O-RING

1шт.

3

KHJ12610

HYDRAULIC HOSE,12.70 mm ID x 800.00 mm

1шт.

4

KHJ19020

ACCUMULATOR

Incl. 5-7

1шт.

5

KHJ17540

ACCUMULATOR

1шт.

6

KHJ17720

FILTER HEAD

Incl. 7

1шт.

7

KHJ17730

HYDRAULIC OIL FILTER

1шт.

8

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

2шт.

9

150409A1

WASHER

2шт.

10

KHJ14520

SOLENOID VALVE

See Fig. 08-69

1шт.

11

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

12

150409A1

WASHER

2шт.

13

KHJ14960

SUPPORT

1шт.

14

166352A1

BOLT

M12 x 30

2шт.

15

KHJ16220

COVER

1шт.

16

166345A1

BOLT

M8 x 16

2шт.

17

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 18

1шт.

18

154475A1

O-RING

1шт.

19

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 20

1шт.

20

154475A1

O-RING

1шт.

21

159226A1

ADAPTER

Incl. 22

1шт.

22

154475A1

O-RING

1шт.

23

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 24

1шт.

24

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

25

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 26

2шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

27

159002A1

PLUG

Incl. 28

1шт.

28

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

30

KRJ4750

HOSE,410.00 mm

1шт.

31

KTJ1674

HOSE

3600 mm

1шт.

32

161481A1

HOSE

2600 mm

1шт.

33

KHJ19390

HOSE

2050 mm

1шт.

34

KHJ19400

HOSE

4400 mm

1шт.

35

167873A1

HYDRAULIC HOSE,9.50 mm ID x 400.00 mm

1шт.

36

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 37

1шт.

37

154475A1

O-RING

1шт.

53

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 54

1шт.

54

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

55

KHJ1052

HYDRAULIC HOSE,6.35 mm ID x 550.00 mm

1шт.

56

KHJ2130

TEE

1шт.

57

159497A1

TEE

Incl. 58

1шт.

58

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

59

161483A1

HOSE ASSY.

1шт.

60

KHJ16200

HYDRAULIC HOSE,6.35 mm ID x 400.00 mm

1шт.

61

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 62

2шт.

62

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

63

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 64

1шт.

64

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

65

167666A1

FITTING

Incl. 66

1шт.

66

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

67

KHJ1222

ELBOW

1шт.

68

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 69

1шт.

69

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

71

KHJ21160

HYDRAULIC HOSE

1шт.

72

KHJ17020

HYDRAULIC HOSE

3550 mm

1шт.

73

167867A1

HYDRAULIC HOSE,6.30 mm ID x 800.00 mm

1шт.

75

KHJ19420

HOSE

4600 mm

1шт.

76

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 77

3шт.

77

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

116

KHR2581

CLAMP

3шт.

117

KHJ1215

BOLT,Spcl

M8 x 25

3шт.

122

150071A1

MOUNTING CLIP

250 mm

5шт.

123

KHR2584

CLAMP

8шт.

124

KHJ1215

BOLT,Spcl

8шт.

125

150860A1

COLLAR

2шт.

126

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

127

150496A1

MOUNTING CLIP

250 mm

2-3шт.
