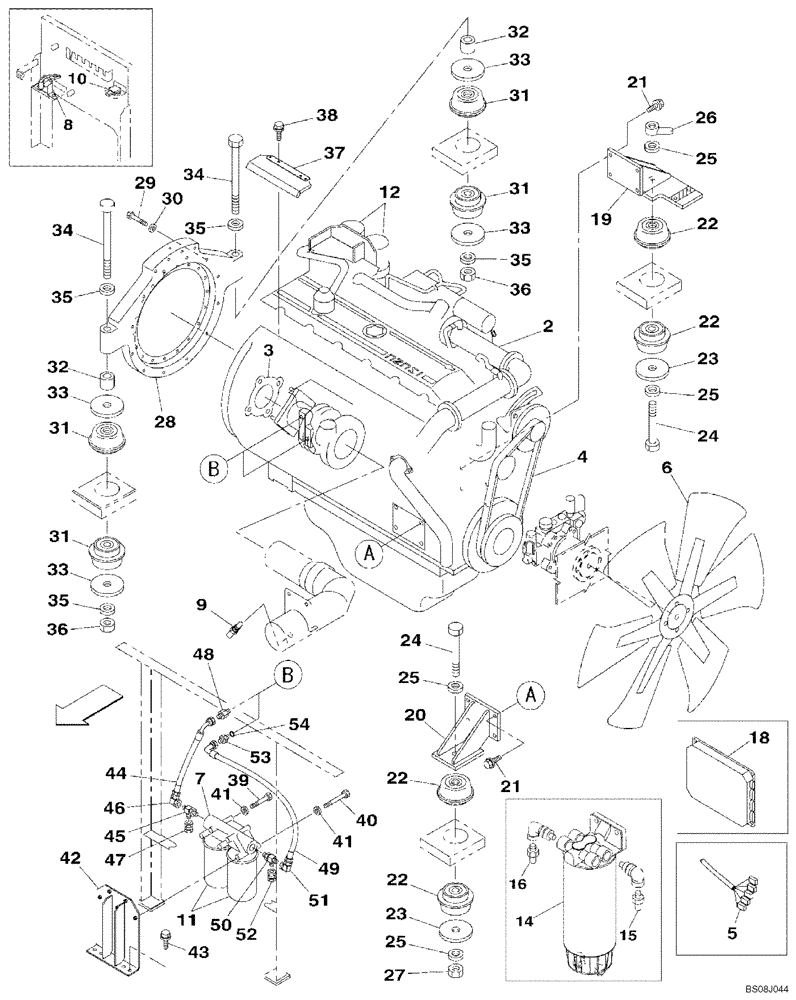

Запчасти Case CX800B (02-01) - ENGINE MOUNTING - ENGINE (02) - ENGINE

2

KUH10100

ENGINE ASSEMBLY

ENGINE ASSY Incl. 3 - 18; Also Includes Figures 02-07 - 02-35, 03-03 - 03-08, 04-13 - 04-17

1шт.

3

REF

INSTRUCTION

Gasket; See Figure 02-28, Ref 9

1шт.

4

REF

INSTRUCTION

Belt; See Figure 02-27, Ref 36

1шт.

5

REF

INSTRUCTION

Harness; See Figure 04-17, Ref 13

1шт.

6

REF

INSTRUCTION

Fan; See Figure 02-27, Ref 1

1шт.

8

REF

INSTRUCTION

Relay; See Figure 04-13, Ref 424

1шт.

9

REF

INSTRUCTION

Sensor; See Figure 04-13, Ref 608

1шт.

10

REF

INSTRUCTION

Sensor; See Figure 04-13, Ref 520

1шт.

11

REF

INSTRUCTION

Oil Filter; See Figure 02-30, Ref 496

1шт.

14

REF

INSTRUCTION

Fuel Filter; See Figure 03-06, Ref 1

1шт.

15

KHH10660

FITTING

1шт.

16

KHH10670

FITTING

1шт.

18

REF

INSTRUCTION

Controller; See Figure 04-13, Ref 613

1шт.

19

KWH0030

ENGINE MOUNT

1шт.

20

KUH0150

ENGINE MOUNT

1шт.

21

166470A1

BOLT,M14, W/ Wshr

M14 x 40

8шт.

22

KUH0115

SILENTBLOC

4шт.

23

KUH0013

PLATE

2шт.

24

102R024Y200R

BOLT

M24 x 200

2шт.

25

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

W24

4шт.

26

KWH0033

SPECIAL NUT

1шт.

27

829-1424

NUT,M24, Cl 10

1шт.

28

KUH10020

FLANGE

1шт.

29

827-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 10.9

12шт.

30

150811A1

WASHER

W12

12шт.

31

KUH10370

SILENTBLOC

Replaces KUH0114

4шт.

32

KUH0152

SPACER

2шт.

33

KUH0013

PLATE

4шт.

34

KUH0151

BOLT

M24 x 330

2шт.

35

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

W24

4шт.

36

829-1424

NUT,M24, Cl 10

2шт.

37

KWH10070

PROTECTION PLATE

1шт.

38

167182A1

BOLT,Sems, M8 x 25mm

M8 x 25

4шт.

39

102R010Y110R

BOLT

M10 x 110

2шт.

40

102R010Y140R

BOLT

M10 x 140

3шт.

41

150409A1

WASHER

W M10

5шт.

42

KUH10140

SUPPORT

1шт.

43

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

44

KUH10120

HYDRAULIC HOSE,25.40 mm ID x 540.00 mm

1шт.

45

ABV0829

TEE

1шт.

46

BHA1110

GASKET

1шт.

47

153683A1

PLUG

1шт.

48

KMJ0187

ADAPTER

1шт.

49

KUH10130

HYDRAULIC HOSE,25.40 mm ID x 820.00 mm

1шт.

50

ABV0829

TEE

1шт.

51

BHA1110

GASKET

1шт.

52

153683A1

PLUG

1шт.

53

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

Incl. 53

1шт.

54

154523A1

O-RING

1шт.
