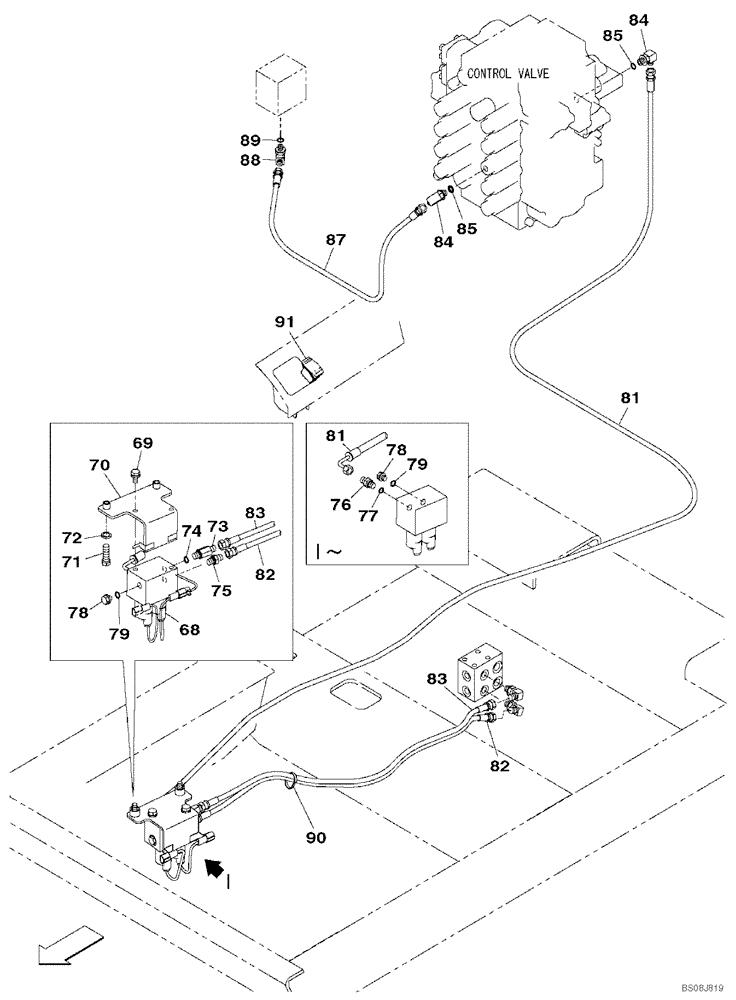

Запчасти Case CX800B (08-37[02]) - HYDRAULIC CIRCUIT - SINGLE ACTING CIRCUIT (08) - HYDRAULICS

68

KHJ14000

VALVE SECTION

See Fig. 08-38

1шт.

69

166351A1

BOLT,Sems, M10 x 20mm

M10 x 20

2шт.

70

KHJ14680

SUPPORT

1шт.

71

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

72

150409A1

WASHER

2шт.

73

162554A1

FITTING

Incl. 74

1шт.

74

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

75

161841A1

HYD CONNECTOR

1шт.

76

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 77

1шт.

77

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

78

159002A1

PLUG

Incl. 79

2шт.

79

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

81

KHJ17630

HOSE

6 X 4500

1шт.

82

KHJ15180

HYDRAULIC HOSE

6 X 950

1шт.

83

KHJ2049

HOSE

6 X 900

1шт.

84

156554A1

ELBOW

Incl. 85

2шт.

85

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

87

151877A1

HOSE,63.00 mm ID x 1200.00 mm

1шт.

88

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 89

1шт.

89

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

90

150496A1

MOUNTING CLIP

1шт.

91

KHR14060

SWITCH,Breaker

1шт.
