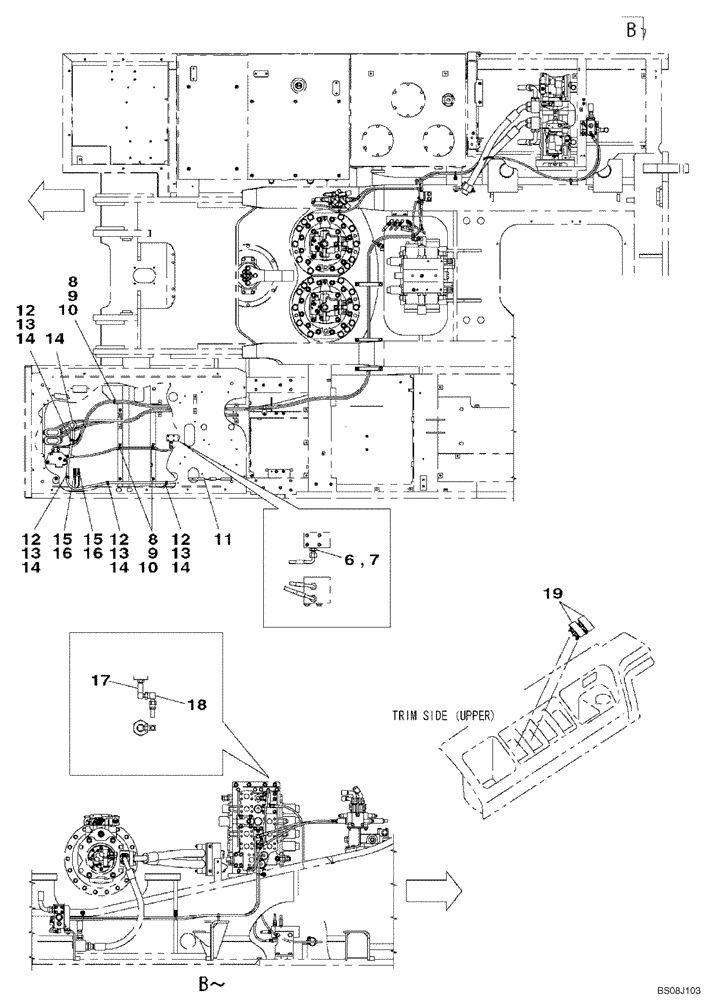

Запчасти Case CX800B (08-36[03]) - HYDRAULIC CIRCUIT - PLUG, BLANK-OFF (SECOND OPTION LINE S/V) (08) - HYDRAULICS

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 7

2шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

150860A1

COLLAR

3шт.

9

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

3шт.

10

150496A1

MOUNTING CLIP

3шт.

11

KHR15060

WIRE HARNESS

1шт.

12

150860A1

COLLAR

4шт.

13

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

4шт.

14

150496A1

MOUNTING CLIP

250 mm

5шт.

15

158962A1

CLIP

2шт.

16

166345A1

BOLT

M8 x 16

2шт.

17

KHJ1178

ELBOW

1шт.

18

163814A1

ELBOW

1шт.

19

KHR10390

CAP

2шт.
