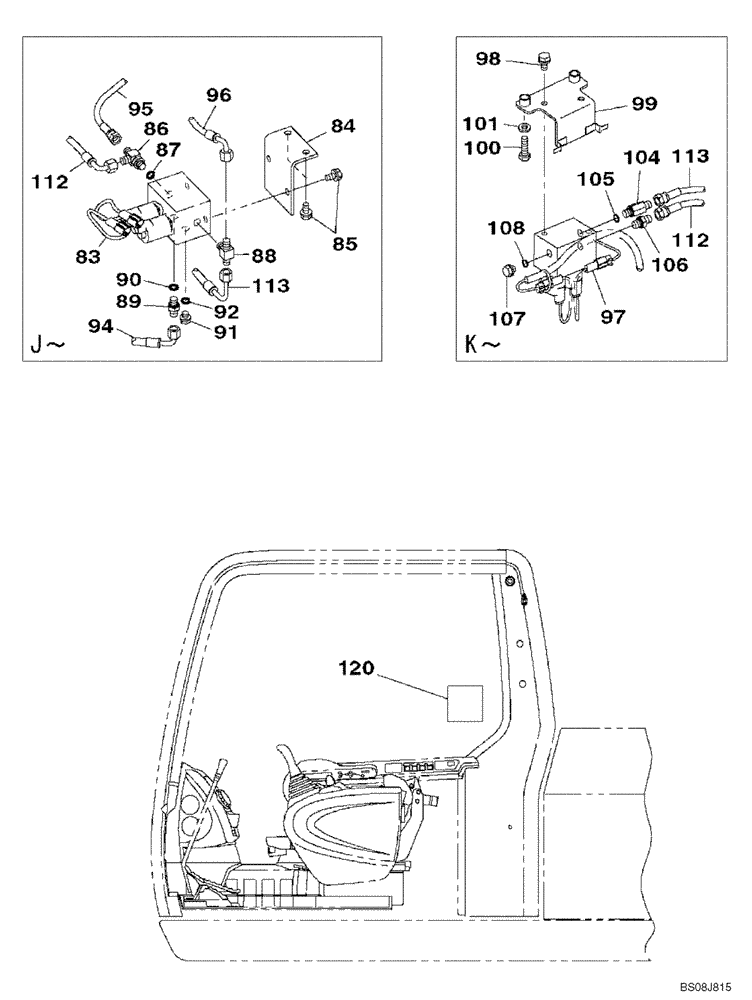

Запчасти Case CX800B (08-28[03]) - HYDRAULIC CIRCUIT - OPTIONAL - 3-WAY (08) - HYDRAULICS

83

KHJ14000

VALVE SECTION

See Fig. 08-38

1шт.

84

KHJ17970

BRACKET

1шт.

85

166351A1

BOLT,Sems, M10 x 20mm

M10x20

4шт.

86

159497A1

TEE

Incl. 87

1шт.

87

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

88

167321A1

TEE

1шт.

89

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 90

1шт.

90

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

91

159002A1

PLUG

Incl. 92

2шт.

92

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

94

KHJ19440

HOSE

6x5000

1шт.

95

KHJ14650

HYDRAULIC HOSE

6x650

1шт.

96

KHJ2048

HOSE,6.3mm ID x 750mm L

6x800

1шт.

97

KHJ14000

VALVE SECTION

See Fig. 08-38

1шт.

98

166351A1

BOLT,Sems, M10 x 20mm

M10x20

2шт.

99

KHJ14680

SUPPORT

1шт.

100

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

101

150409A1

WASHER

2шт.

104

162554A1

FITTING

Incl. 105

2шт.

105

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

106

161841A1

HYD CONNECTOR

1шт.

107

159002A1

PLUG

Incl. 108

1шт.

108

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

112

KHJ2180

HOSE,6.3mm ID x 500mm L

6x500

1шт.

113

KHJ2194

HOSE,6.3mm ID x 650mm L

6x650

1шт.

120

KHP13320

DECAL

1шт.
