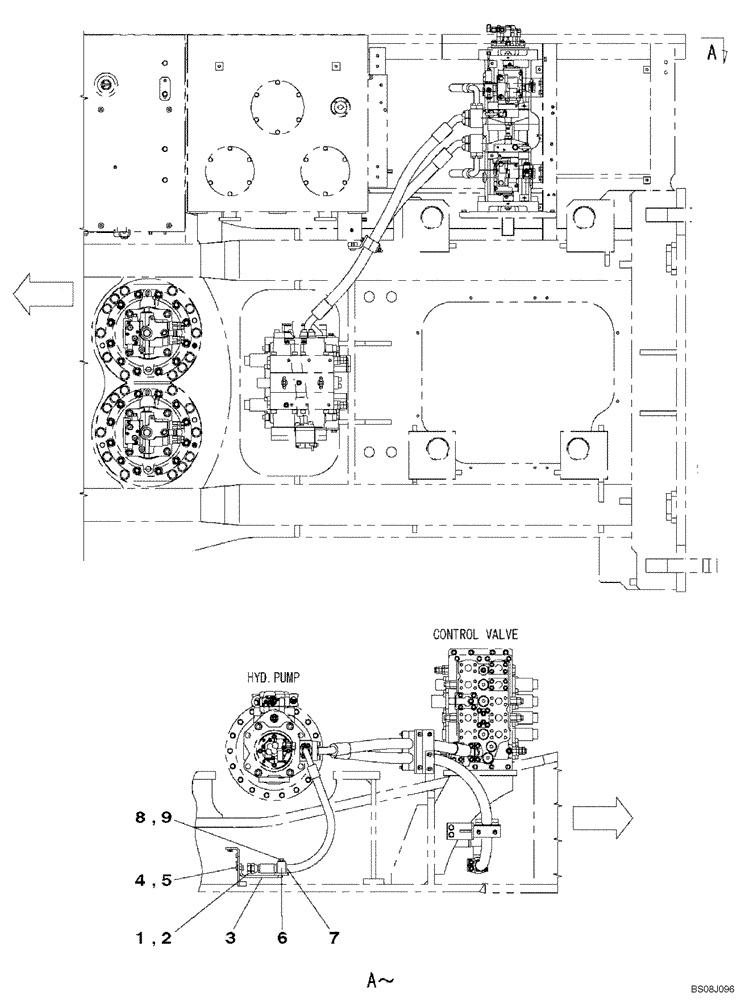

(08-27[01]) - HYDRAULIC CIRCUIT - PLUG, BLANK-OFF (WITHOUT SELF-DETACHING COUNTERWEIGHT SYSTEM)

Запчасти Case CX800B (08-27[01]) - HYDRAULIC CIRCUIT - PLUG, BLANK-OFF (WITHOUT SELF-DETACHING COUNTERWEIGHT SYSTEM) (08) - HYDRAULICS

Схема запчастей Case CX800B - (08-27[01]) - HYDRAULIC CIRCUIT - PLUG, BLANK-OFF (WITHOUT SELF-DETACHING COUNTERWEIGHT SYSTEM) (08) - HYDRAULICS
6
9
8
2
1
7
5
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ1913

PLUG

1шт.

2

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

3

KWJ11710

BRACKET

1шт.

4

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

5

150811A1

WASHER

2шт.

6

KUJ10200

CLAMP

1шт.

7

KHJ2679

HOSE CLAMP

1шт.

8

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

2шт.

9

150811A1

WASHER

2шт.

Выбрано товаров: 9
