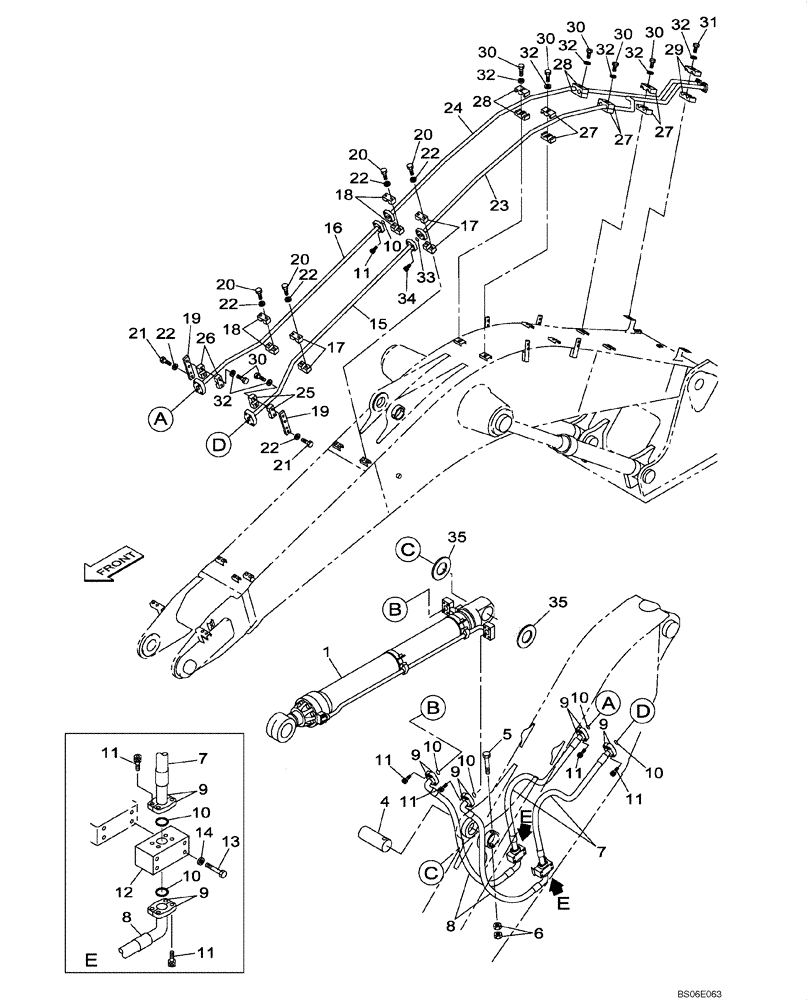

Запчасти Case CX800B (08-18) - HYDRAULIC CIRCUIT - BUCKET CYLINDER - BOOM (8.40 M) - ARM (5.60 M) (08) - HYDRAULICS

1

KUV10040

BUCKET CYLINDER

Bucket; See Figure 08-75

1шт.

3

KUV0025

PIN

1шт.

5

132R030W260N

BOLT,M30 x 2 x 260mm

M30 x 2 x 260

1шт.

6

829-13430

NUT,M30 x 1.5, Cl 10

2шт.

7

KUV0107

HYDRAULIC HOSE,38.10 mm ID x 2600.00 mm

2шт.

8

KUV0234

HYDRAULIC HOSE,38.10 mm ID x 1400.00 mm

2шт.

9

KTJ0169

FLANGE

16шт.

10

168211A1

O-RING

9шт.

11

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

36шт.

12

KUV0235

MANIFOLD

2шт.

13

827-16140

BOLT,Hex, M16 x 2 x 140mm, Cl 10.9

8шт.

14

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

W 16

8шт.

15

KUV10490

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

16

KUV10500

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

17

KUV0054

CLAMP BRACKET

4шт.

18

KUV0055

CLAMP BRACKET

4шт.

19

KUV0070

PLATE

2шт.

20

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

8шт.

21

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

22

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

W 16

12шт.

23

KUV0177

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

24

KUV0178

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

25

KUV0054

CLAMP BRACKET

2шт.

26

KUV0055

CLAMP BRACKET

2шт.

27

KUV0057

CLAMP BRACKET

6шт.

28

KUV0058

CLAMP BRACKET

4шт.

29

KUV0176

CLAMP BRACKET

2шт.

30

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

14шт.

31

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

2шт.

32

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

W 16

16шт.

33

164450A1

O-RING

1шт.

34

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

4шт.

35

KHV0287

SHIM

1шт.
