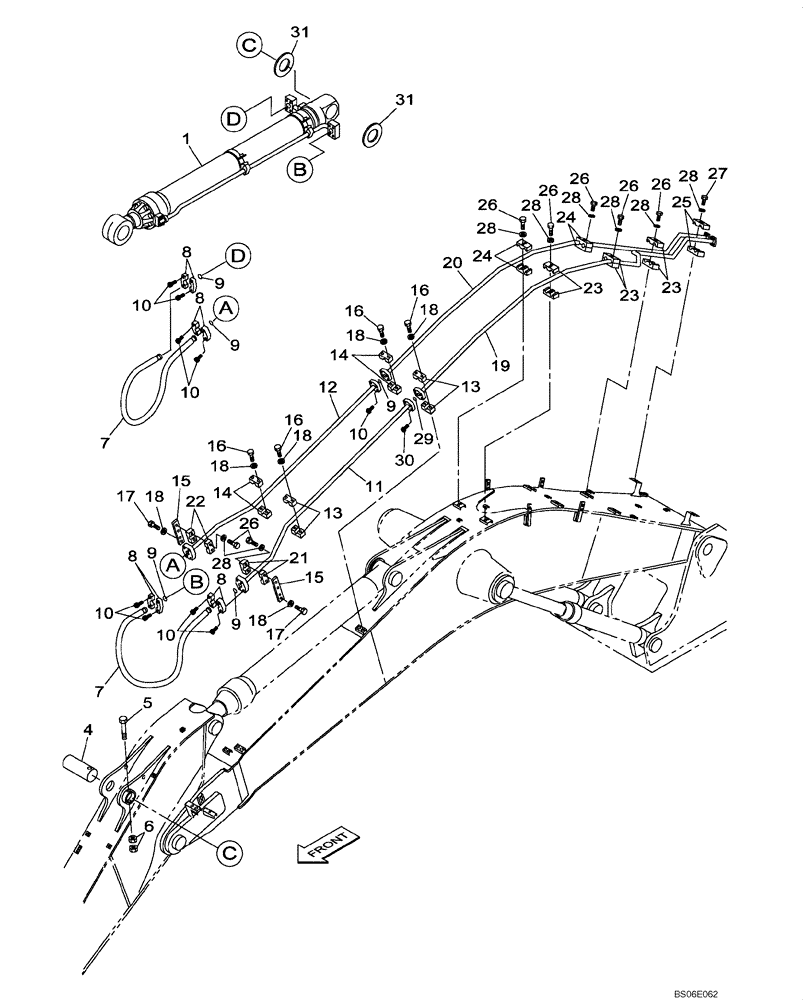

Запчасти Case CX800B (08-16) - HYDRAULIC CIRCUIT - BUCKET CYLINDER - BOOM (8.40 M) - ARM (3.66 M) (08) - HYDRAULICS

1

KUV10040

BUCKET CYLINDER

Bucket; See Figure 08-75

1шт.

3

KUV0025

PIN

1шт.

5

132R030W260N

BOLT,M30 x 2 x 260mm

M30 x 2 x 260

1шт.

6

829-13430

NUT,M30 x 1.5, Cl 10

2шт.

7

KUV0107

HYDRAULIC HOSE,38.10 mm ID x 2600.00 mm

2шт.

8

KTJ0169

FLANGE

8шт.

9

168211A1

O-RING

5шт.

10

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

20шт.

11

KUV0045

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

12

KUV0046

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

13

KUV0054

CLAMP BRACKET

4шт.

14

KUV0055

CLAMP BRACKET

4шт.

15

KUV0070

PLATE

2шт.

16

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

8шт.

17

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

18

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

W 16

12шт.

19

KUV0177

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

20

KUV0178

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

21

KUV0054

CLAMP BRACKET

2шт.

22

KUV0055

CLAMP BRACKET

2шт.

23

KUV0057

CLAMP BRACKET

6шт.

24

KUV0058

CLAMP BRACKET

4шт.

25

KUV0176

CLAMP BRACKET

2шт.

26

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

14шт.

27

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

2шт.

28

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

W 16

16шт.

29

164450A1

O-RING

1шт.

30

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

4шт.

31

KHV0287

SHIM

1шт.
