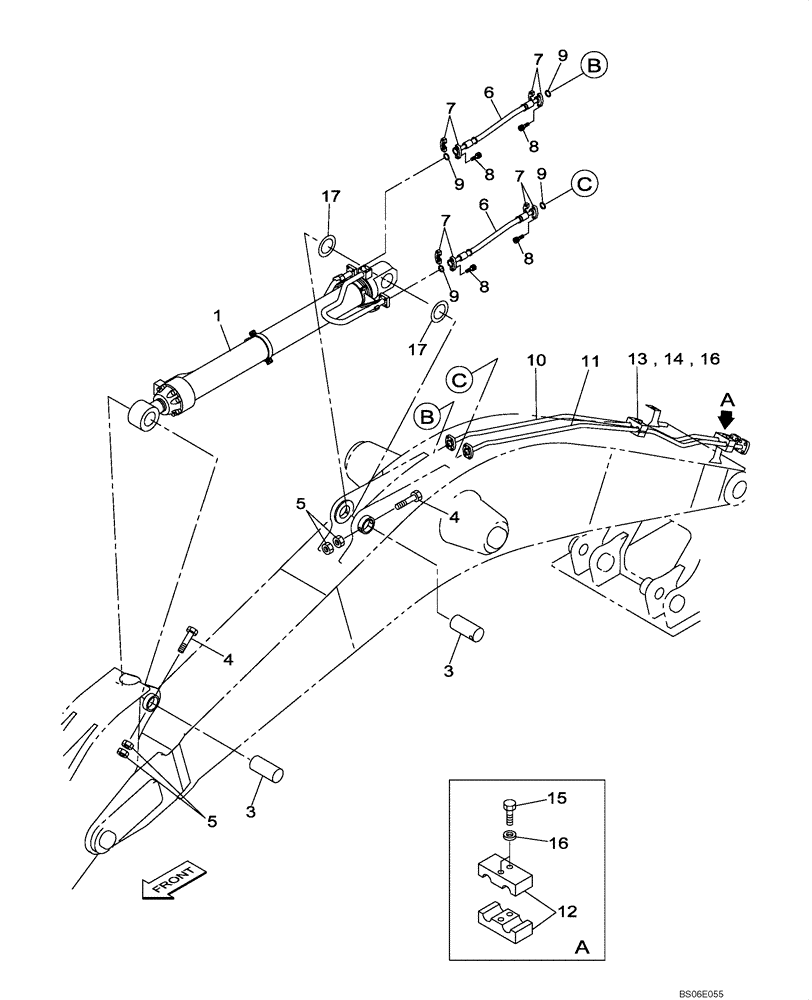

Запчасти Case CX800B (08-14) - HYDRAULIC CIRCUIT - ARM CYLINDER - BOOM (8.40 M) - (WITHOUT VALVE, PRESSURE RELIEF) (08) - HYDRAULICS

1

KUV10030

HYDRAULIC CYLINDER

Arm; See Figure 08-72

1шт.

3

KUV0025

PIN

2шт.

4.

132R030W260N

BOLT,M30 x 2 x 260mm

M30 x 2 x 260

2шт.

5

829-13430

NUT,M30 x 1.5, Cl 10

4шт.

6

KUV0051

HYDRAULIC HOSE,38.10 mm ID x 1550.00 mm

2шт.

7

KTJ0169

FLANGE

8шт.

8

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

16шт.

9

168211A1

O-RING

4шт.

10

KUV0246

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

11

KUV0245

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

12

KUV0175

CLAMP BRACKET

2шт.

13

KUV0058

CLAMP BRACKET

2шт.

14

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

2шт.

15

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

2шт.

16

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

W 16

4шт.

17

KHV0287

SHIM

1шт.
