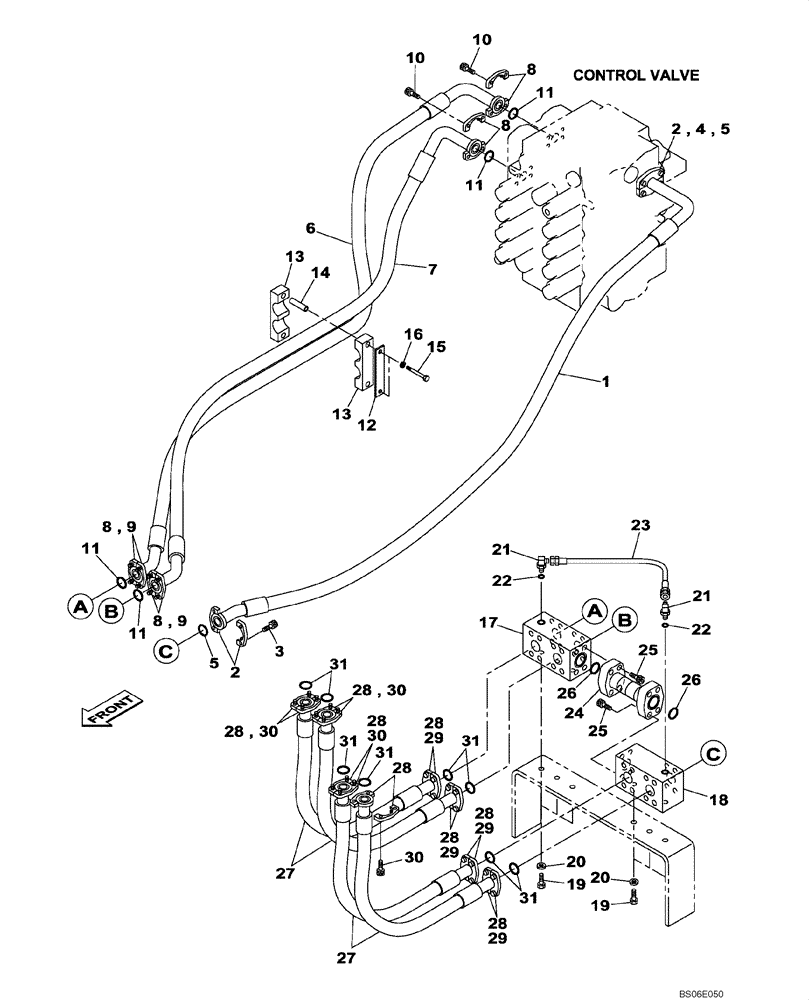

Запчасти Case CX800B (08-10) - HYDRAULIC CIRCUIT - BOOM CYLINDER (08) - HYDRAULICS

1

KUJ0216

HYDRAULIC HOSE,31.80 mm ID x 2510.00 mm

1шт.

2

150124A1

FLANGE

4шт.

3

862-14040

HEX SOC SCREW,M14 x 40mm, Cl 12.9

4шт.

4

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

M14 x 45

8шт.

5

164450A1

O-RING

2шт.

6

KUJ0215

HYDRAULIC HOSE,31.80 mm ID x 2470.00 mm

1шт.

7

KUJ10320

HYDRAULIC HOSE,31.80 mm ID x 2220.00 mm

1шт.

8

150124A1

FLANGE

8шт.

5

862-14040

HEX SOC SCREW,M14 x 40mm, Cl 12.9

8шт.

10

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

M14 x 45

8шт.

11

164450A1

O-RING

4шт.

12

152888A1

PLATE, SPACER

PLATE,SPACER

1шт.

13

KUJ0213

HOSE CLAMP

2шт.

14

KUJ0036

SPACER

2шт.

15

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

2шт.

16

150409A1

WASHER

W M10

2шт.

17

KUJ0071

MANIFOLD VALVE

1шт.

18

KUJ0072

MANIFOLD VALVE

1шт.

19

102R014Y030R

BOLT

M14 x 30

6шт.

20

150418A1

WASHER

W M14

6шт.

21

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 22

2шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

23

KUJ0074

HYDRAULIC HOSE,6.30 mm ID x 420.00 mm

1шт.

24

KUJ0073

TUBE ASSY.,34.7 mm ID x 42.7 mm OD

1шт.

25

862-14040

HEX SOC SCREW,M14 x 40mm, Cl 12.9

8шт.

26

164450A1

O-RING

2шт.

27

KWJ10300

HYDRAULIC HOSE,31.80 mm ID x 1280.00 mm

4шт.

28

150124A1

FLANGE

16шт.

29

862-14040

HEX SOC SCREW,M14 x 40mm, Cl 12.9

16шт.

30

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

M14 x 45

16шт.

31

164450A1

O-RING

8шт.
