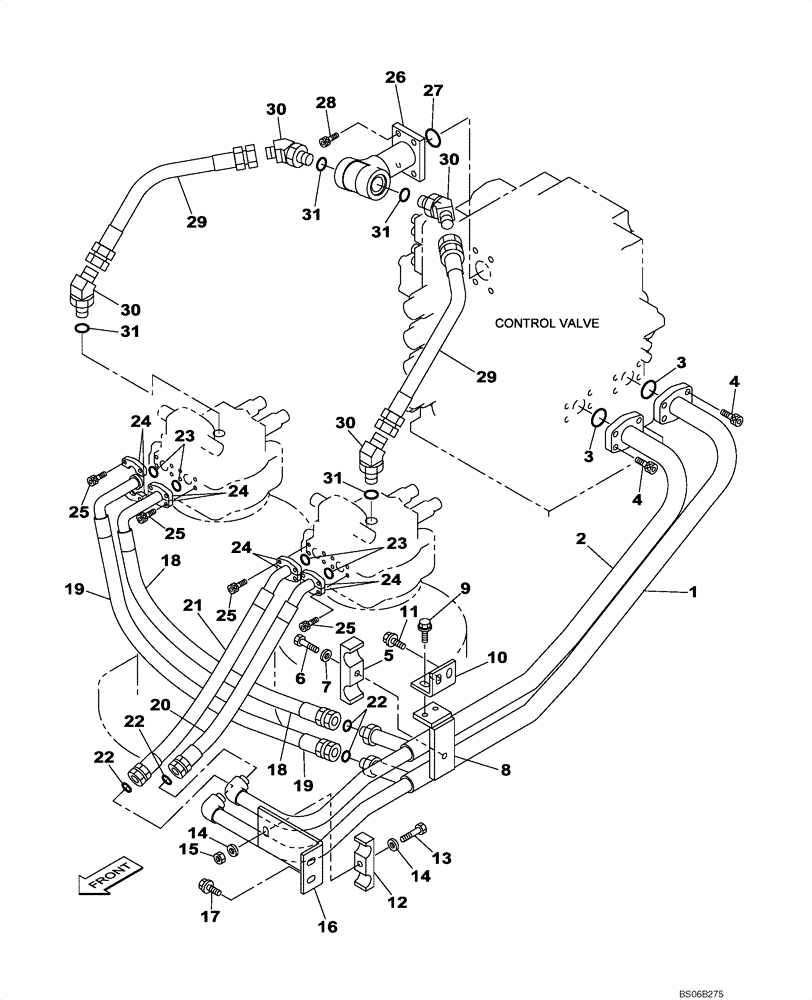

Запчасти Case CX700B (08-08) - HYDRAULICS - SWING (08) - HYDRAULICS

1

KWJ10060

HYD TUBE,26 mm ID x 34 mm OD

1шт.

2

KWJ10080

HYD TUBE,26 mm ID x 34 mm OD

1шт.

3

164450A1

O-RING

2шт.

4

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

8шт.

5

153188A1

COLLAR

1шт.

6

167070A1

SCREW,M14 x 80mm

M14 x 80

1шт.

7

150418A1

WASHER

W M14

1шт.

8

KWJ10230

SUPPORT

1шт.

9

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

10

KWJ10240

SUPPORT

1шт.

11

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

12

162308A1

COLLAR

1шт.

13

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

1шт.

14

150811A1

WASHER

W 12

2шт.

15

829-1412

NUT,M12, Cl 10.9

1шт.

16

KWJ10250

SUPPORT

1шт.

17

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

18

KWJ10190

HOSE ASSY.,19.00 mm ID x 770.00 mm

1шт.

19

KWJ10200

HOSE ASSY.,19.00 mm ID x 870.00 mm

1шт.

20

KWJ10210

HYDRAULIC HOSE,19.00 mm ID x 550.00 mm

1шт.

21

KWJ10220

HYDRAULIC HOSE

600 mm

1шт.

22

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

23

155210A1

O-RING

4шт.

24

153458A1

FLANGE

8шт.

25

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

16шт.

26

KUJ0223

TUBE ASSY.,52.9 mm ID x 60.5 mm OD

1шт.

27

154681A1

O-RING

1шт.

28

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

4шт.

29

KWJ10150

HOSE ASSY.,25.40 mm ID x 550.00 mm

2шт.

30

157587A1

ELBOW

Incl. 31

4шт.

31

154523A1

O-RING

4шт.
