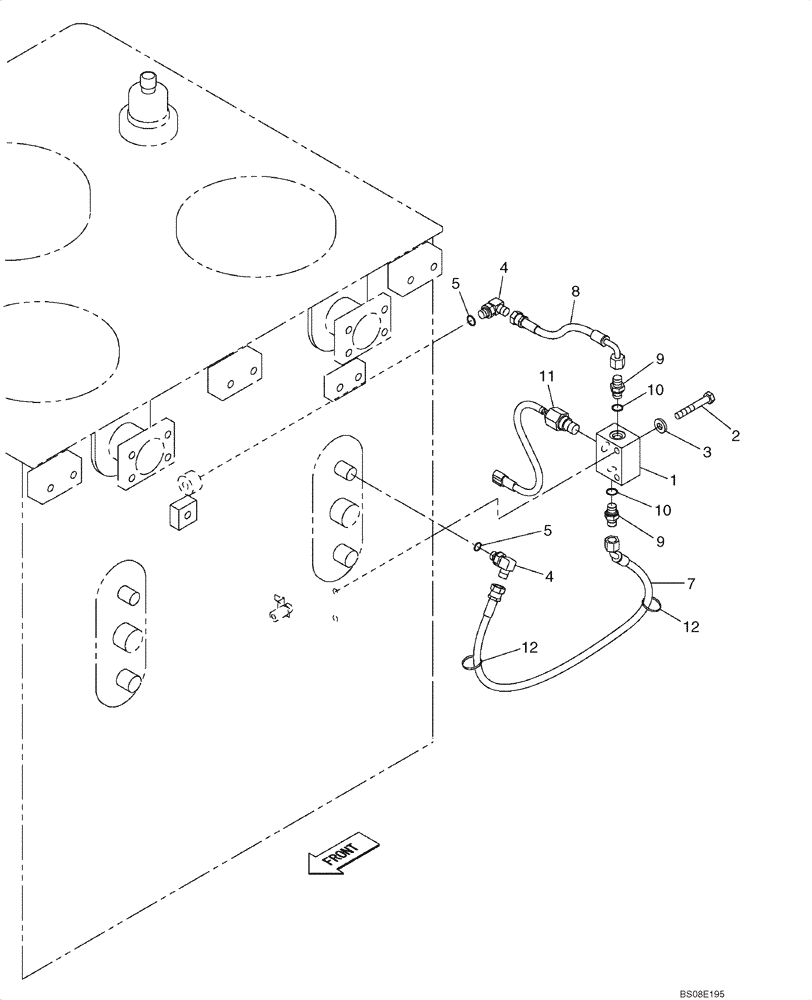

Запчасти Case CX700B (08-03) - HYDRAULIC RESERVOIR - PRESSURE SWITCH (08) - HYDRAULICS

1

KHJ11730

MANIFOLD VALVE

1шт.

2

827-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9

2шт.

3

153081A1

WASHER

2шт.

4

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 5

2шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

7

KHJ15120

HYDRAULIC HOSE

1шт.

8

KHJ2238

HOSE

1шт.

9

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 10

2шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

KHR14470

PRESSURE SWITCH

Pressure

1шт.

12

150071A1

MOUNTING CLIP

2шт.
