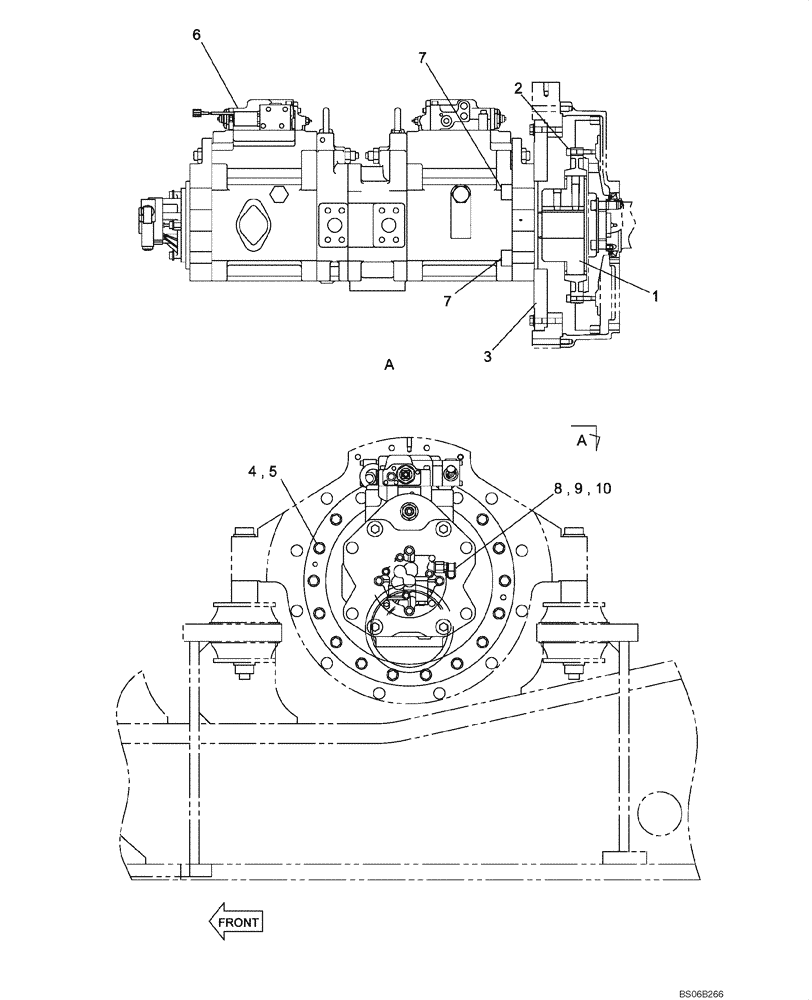

Запчасти Case CX700B (08-02) - HYDRAULIC PUMP - COUPLING (08) - HYDRAULICS

1

KWJ0021

COUPLING

1шт.

2

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

16шт.

3

KWJ10520

PLATE

1шт.

4

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

M12 x 20

16шт.

5

150811A1

WASHER

W12

16шт.

6

KWJ11250

HYDRAULIC PUMP

See Figures 08-29, 08-30, 08-31, 08-32

1шт.

7

108R024Y080R

BOLT

M24 x 80

4шт.

8

KHJ2620

BUSHING

Incl. 9

1шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

10

1541849C1

COUPLING

1шт.
