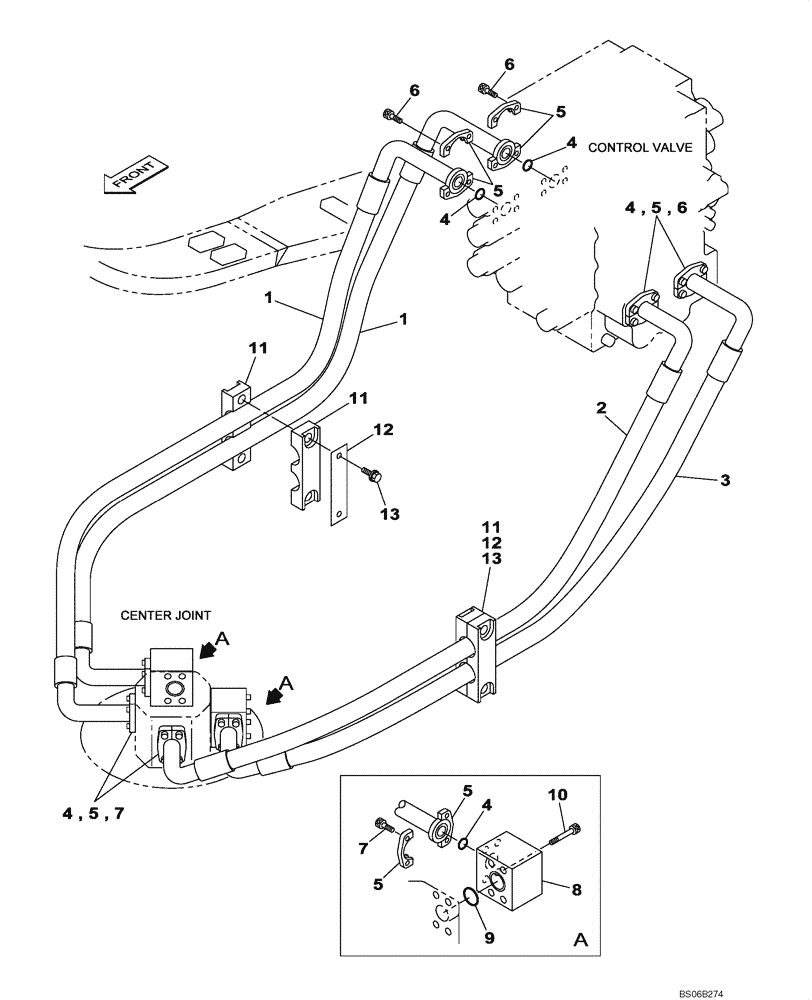

Запчасти Case CX700B (06-06) - HYDRAULIC CIRCUIT - TRAVEL (06) - POWER TRAIN

1

KWJ10140

HOSE ASSY.,31.80 mm ID x 1830.00 mm

2шт.

2

KWJ10160

HOSE ASSY.,31.80 mm ID x 1780.00 mm

1шт.

3

KWJ10170

HOSE ASSY.,31.80 mm ID x 1800.00 mm

1шт.

4

164450A1

O-RING

8шт.

5

150124A1

FLANGE

16шт.

6

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

16шт.

7

862-14040

HEX SOC SCREW,M14 x 40mm, Cl 12.9

16шт.

8

KUJ0285

MANIFOLD VALVE

2шт.

9

164450A1

O-RING

2шт.

10

862-14090

HEX SOC SCREW,M14 x 90mm, Cl 12.9

8шт.

11

KWJ10010

CLAMP

4шт.

12

KWJ10180

PLATE

2шт.

13

166052A1

BOLT

M10 x 25

4шт.
