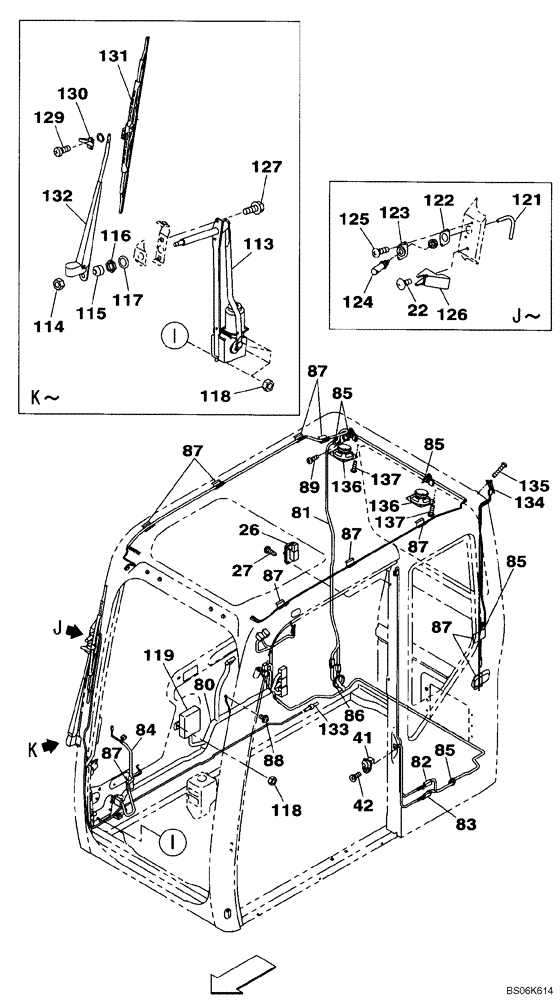

Запчасти Case CX700B (04-20) - CAB ELECTRICAL - WIPER, WINDSHIELD (04) - ELECTRICAL SYSTEMS

KHN16502

CAB

Incl. 22 - 137; Also Includes Parts On Figures 09-11, 09-12, 09-14, 09-15 (Includes Door)

1шт.

22

KHN2768

SCREW,Spcl

1шт.

26

KHN2714

COURTESY LIGHT

DOME LIGHT

1шт.

27

KHN2687

SCREW,Spcl

2шт.

41

KHR2950

LIMIT SWITCH

Limit; See Figure 09-14 For Additional Limit Switch

1шт.

42

KHN2713

SCREW,Spcl

1шт.

80

KHN15050

HARNESS

1шт.

81

KHN15060

HARNESS

1шт.

82

KHN15070

HARNESS

1шт.

83

KHN15080

HARNESS

1шт.

84

KHN15090

HARNESS

1шт.

85

KHN2709

GROMMET

7шт.

86

161360A1

GUARD ASSY.

1шт.

87

KHN2712

FASTENER

10шт.

88

KHN2719

SCREW,Spcl

1шт.

89

KHN16240

SCREW

1шт.

113

KHN16020

WIPER MOTOR

Incl. 114 - 117

1шт.

114

KHN2740

SPECIAL NUT

1шт.

115

KHN2739

CAP

1шт.

116

KHN2738

SPECIAL NUT

1шт.

117

KHN2737

WASHER

1шт.

118

KHN16030

SPECIAL NUT

6шт.

119

KHN3392

ECU

1шт.

119

KHN3392R

REMAN ELECT CONTROL

CX700B CRAWLER EXCAVATOR TIER 3 (NA) (6/08-)

1шт.

119

KHN3392C

CORE-ELECTRONIC CONT

Return Number

1шт.

KHN16040

NOZZLE

Incl. 121 - 124

1шт.

121

KHN16050

TUBE

1шт.

122

KHN14180

GASKET

Packing

1шт.

123

161345A1

ADAPTER

1шт.

124

KHN2746

NOZZLE

1шт.

125

KHN16070

SCREW

2шт.

126

KHN16080

SUPPORT

1шт.

127

KHN18880

BOLT

Replaces KHN2756

1шт.

KHN16090

WIPER ARM

Incl. 129 - 132

1шт.

129

KHN20170

SCREW,Spcl

Replaces KHN2733

1шт.

130

KHN2732

ADAPTER

1шт.

131

KHN16820

WINDSHIELD WIPER

1шт.

132

KHN16830

WIPER ARM

1шт.

133

KHN16100

RUBBER JOINT

1шт.

134

KHN16340

ANTENNA

1шт.

135

KHN16110

SCREW

1шт.

136

KHR3366

SPEAKER

2шт.

137

KHN2716

SCREW,Spcl

8шт.

138

KHN3352

SPACER

Replaces 159543A1, Not Shown

1шт.
