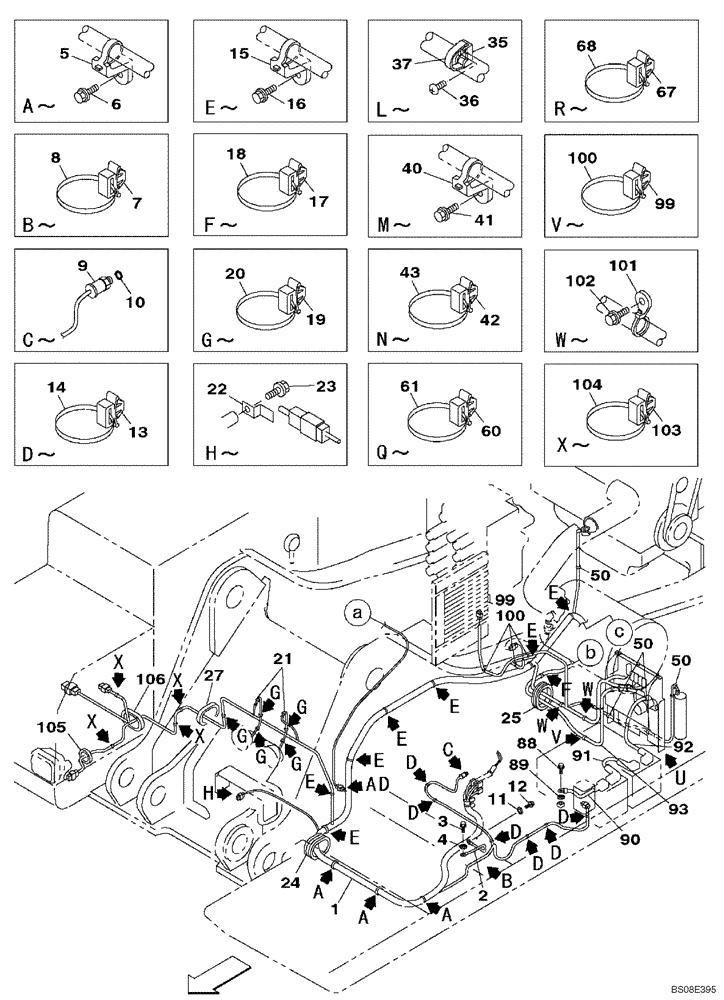

Запчасти Case CX700B (04-03) - HARNESS, MAIN - CLAMPS AND RETAINERS (04) - ELECTRICAL SYSTEMS

1

KWR10100

HARNESS

1шт.

2

KHR11090

GROUND CABLE

1шт.

3

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

4

167518A1

BOLT

1шт.

5

KHR2581

CLAMP

3шт.

6

KHJ1215

BOLT,Spcl

3шт.

7

KHR10220

MOUNTING CLIP

1шт.

8

150496A1

MOUNTING CLIP

1шт.

9

KHR10300

SENSOR,5 MPa

Pilot Pressure Incl. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

893-11008

LOCK WASHER,Ext Tooth, M8

2шт.

12

167518A1

BOLT

2шт.

13

KHR10220

MOUNTING CLIP

6шт.

14

150496A1

MOUNTING CLIP

7шт.

15

KHR2581

CLAMP

7шт.

16

KHJ1215

BOLT,Spcl

7шт.

17

KHR10220

MOUNTING CLIP

1шт.

18

150496A1

MOUNTING CLIP

1шт.

19

KHR10220

MOUNTING CLIP

15шт.

20

150496A1

MOUNTING CLIP

15шт.

21

150496A1

MOUNTING CLIP

2шт.

22

158962A1

CLIP

1шт.

23

167518A1

BOLT

1шт.

24

KUR0067

GROMMET

1шт.

25

163732A1

GROMMET

1шт.

27

KHR4332

GROMMET

1шт.

35

150860A1

COLLAR

3шт.

36

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

3шт.

37

150496A1

MOUNTING CLIP

2шт.

40

KHR2581

CLAMP

5шт.

41

KHJ1215

BOLT,Spcl

5шт.

42

KHR10220

MOUNTING CLIP

6шт.

43

150496A1

MOUNTING CLIP

6шт.

50

150496A1

MOUNTING CLIP

6шт.

60

KHR10220

MOUNTING CLIP

6шт.

61

150496A1

MOUNTING CLIP

6шт.

67

KHR10220

MOUNTING CLIP

3шт.

68

150496A1

MOUNTING CLIP

3шт.

88

167518A1

BOLT

1шт.

89

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

90

KHR12370

POS BATTERY CABLE

Battery

1шт.

91

KHR12100

POS BATTERY CABLE

Battery

1шт.

92

KHR12190

POS BATTERY CABLE

Battery L=460mm

1шт.

93

KHR10170

POS BATTERY CABLE

Starter

1шт.

99

KHR10220

MOUNTING CLIP

4шт.

100

150496A1

MOUNTING CLIP

4шт.

101

KHR2584

CLAMP

2шт.

102

KHJ1215

BOLT,Spcl

2шт.

103

KHR10220

MOUNTING CLIP

4шт.

104

150496A1

MOUNTING CLIP

4шт.

105

KNR0617

GROMMET

1шт.

106

159656A1

GROMMET

1шт.
