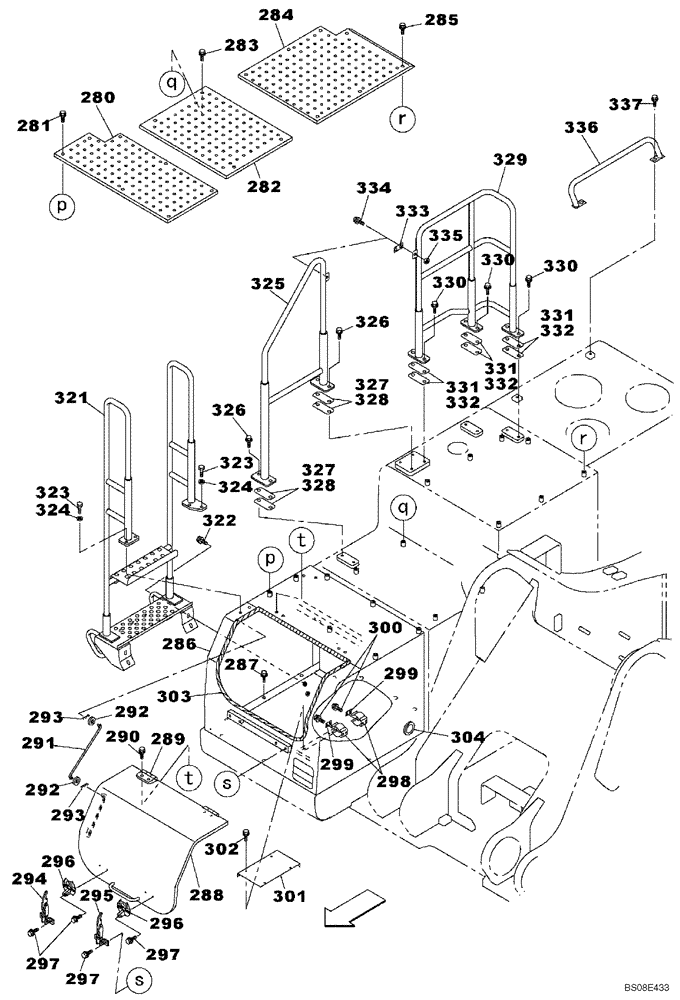

Запчасти Case CX700B (09-78) - COWLING FRONT RIGHT HAND-SIDE CABINET - GRAB RAIL (09) - CHASSIS

280

KWN10090B1

STEEL PLATE

1шт.

281

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

7шт.

282

KWN0028B1

STEEL PLATE

1шт.

283

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

284

KWN10190B1

STEEL PLATE

1шт.

285

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

7шт.

286

KWN10020Y2

COVER

1шт.

287

166352A1

BOLT

7шт.

288

KWN0011Y2

COVER

Incl. 289

1шт.

289

151104A1

HINGE

1шт.

290

166352A1

BOLT

4шт.

291

KWN0044

STAY

1шт.

292

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

293

153181A1

COTTER PIN

2шт.

294

151356A1

LOCK ASSY

1шт.

295

151361A1

HANDLE

1шт.

296

150785A1

STOP LOCK

2шт.

297

166350A1

BOLT

8шт.

298

152772A1

HOLDER

2шт.

299

KHN3548

PLATE

2шт.

300

166346A1

BOLT,Sems, M10

4шт.

301

KWN0125

COVER

1шт.

302

167518A1

BOLT

4шт.

303

KWN0118

GROMMET

1шт.

304

KRJ0188

GROMMET

1шт.

321

KWN0078Y2

GRAB RAIL

1шт.

322

166352A1

BOLT

4шт.

323

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

324

150811A1

WASHER

4шт.

325

KWN10250

HANDRAIL

1шт.

326

166352A1

BOLT

4шт.

327

KUN10200

ADJUSTING PLATE

1шт.

328

KUN10210

ADJUSTING PLATE

1шт.

329

KWN10260Y2

GRAB RAIL

1шт.

330

166352A1

BOLT

6шт.

331

KUN10200

ADJUSTING PLATE

1шт.

332

KUN10210

ADJUSTING PLATE

1шт.

333

KUN0245

PLATE

1шт.

334

166352A1

BOLT

2шт.

335

829-1412

NUT,M12, Cl 10.9

2шт.

336

KTN10720Y2

HANDRAIL

1шт.

337

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.
