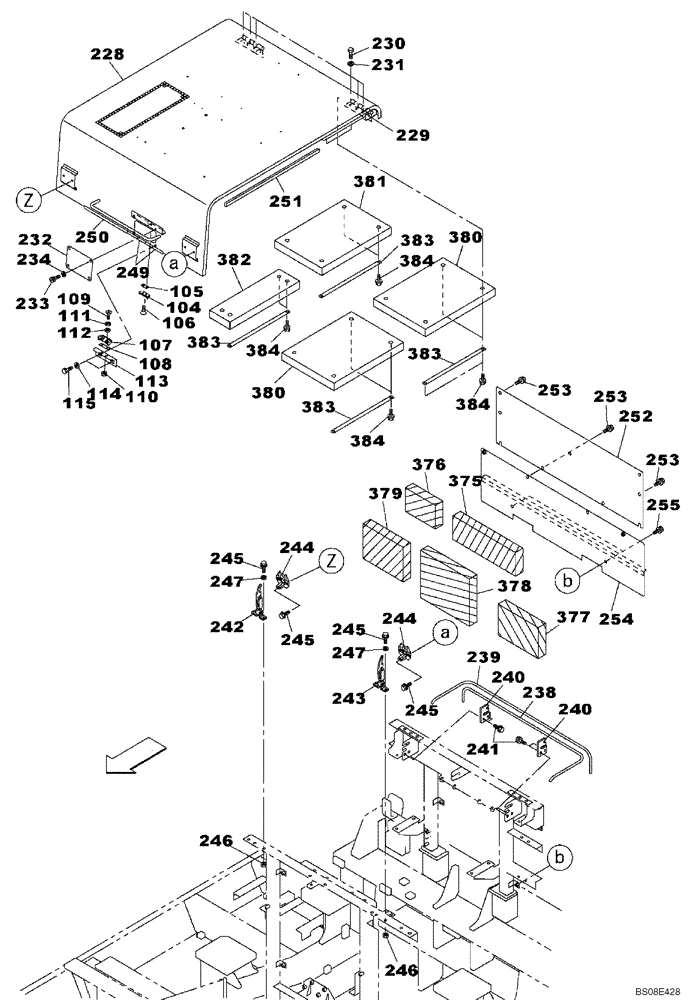

Запчасти Case CX700B (09-74) - COWLING - ENGINE COVER (09) - CHASSIS

104

KUN0149

CUPEL

1шт.

105

KBN0762

PLATE

1шт.

106

KAB0188

SCREW

2шт.

107

KUN0150

CUPEL

1шт.

108

KBN0761

PLATE

1шт.

109

KAB0188

SCREW

2шт.

110

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

111

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

112

183-108VR

SPRING WASHER

2шт.

113

KWN0128

SUPPORT

1шт.

114

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

115

151161A1

WASHER

2шт.

228

KWN0013G1

ENGINE HOOD

Incl 229

1шт.

229

152819A1

HINGE

2шт.

230

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

6шт.

231

150811A1

WASHER

6шт.

232

KWN10080G1

PROTECTION PLATE

1шт.

233

KHJ1632

BOLT,Hex Skt Hd

4шт.

234

150604A1

WASHER

4шт.

238

KWN0058

TORSION SPRING

1шт.

239

KWN0059

TORSION SPRING

1шт.

240

KWN0060

SUPPORT

2шт.

241

166352A1

BOLT

4шт.

242

151356A1

LOCK ASSY

1шт.

243

151361A1

HANDLE

1шт.

244

150785A1

STOP LOCK

2шт.

245

167182A1

BOLT,Sems, M8 x 25mm

8шт.

246

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

247

153081A1

WASHER

4шт.

249

167721A1

SUPPORT LINING

2шт.

250

KWN10500

SUPPORT LINING

1шт.

251

KMN1921

SUPPORT LINING

2шт.

252

KWN0067

PROTECTION PLATE

1шт.

253

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

9шт.

254

KWN10240G1

PROTECTION PLATE

1шт.

255

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

375

KWN0111

NOISE PROTECTION

1шт.

376

KWN0112

NOISE PROTECTION

1шт.

377

KWN0113

NOISE PROTECTION

1шт.

378

KWN0114

NOISE PROTECTION

1шт.

379

KWN0115

NOISE PROTECTION

1шт.

380

KWN0080

FOAM

2шт.

381

KWN0081

FOAM

1шт.

382

KWN0082

FOAM

1шт.

383

KWN0083

SEAL RETAINER

8шт.

384

166345A1

BOLT

16шт.
