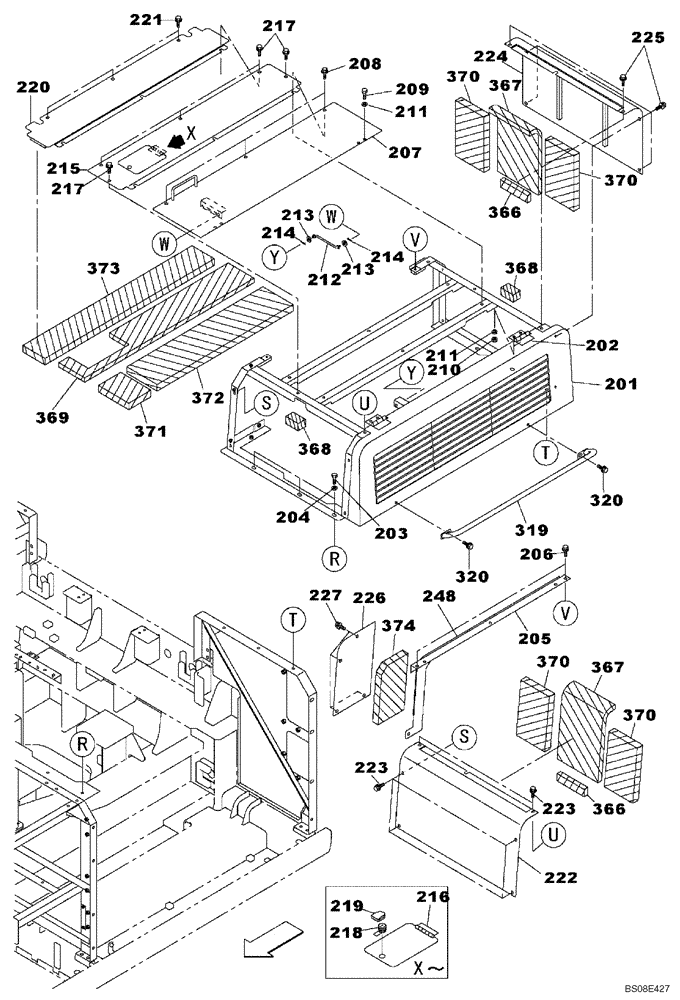

Запчасти Case CX700B (09-73) - COWLING - ENGINE COVER (09) - CHASSIS

KWN0012G1

ENGINE HOOD PANEL

1шт.

201

KWN0045

COVER

1шт.

202

159098A1

HINGE

2шт.

203

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

204

151161A1

WASHER

6шт.

205

KWN0043

FRAME

1шт.

206

166352A1

BOLT

2шт.

207

KWN0050G1

ENGINE HOOD PANEL

1шт.

208

166352A1

BOLT

3шт.

209

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

210

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

211

150409A1

WASHER

8шт.

212

159119A1

STAY

1шт.

213

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

214

153181A1

COTTER PIN

2шт.

215

KWN0051G1

ENGINE HOOD PANEL

Incl. 216

1шт.

216

162283A1

HINGE

1шт.

217

166352A1

BOLT

5шт.

218

KNN0469

LOCK

1шт.

219

KAN2497

CAP

1шт.

220

KWN0052G1

SIEVE

1шт.

221

166352A1

BOLT

3шт.

222

KWN0048G1

ENGINE HOOD PANEL

1шт.

223

166352A1

BOLT

6шт.

224

KWN0049G1

ENGINE HOOD PANEL

1шт.

225

166352A1

BOLT

6шт.

226

KWN0047G1

ENGINE HOOD PANEL

1шт.

227

166352A1

BOLT

4шт.

248

159116A1

GROMMET

2шт.

319

KWN0077Y2

GRAB RAIL

2шт.

320

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

366

KWN0091

SEAL

2шт.

367

KWN0092

SEAL

2шт.

368

KWN0093

SEAL

4шт.

369

KWN0094

SEAL

1шт.

370

KWN0107

NOISE PROTECTION

4шт.

371

KWN0108

NOISE PROTECTION

1шт.

372

KWN0109

NOISE PROTECTION

1шт.

373

KWN0110

NOISE PROTECTION

1шт.
