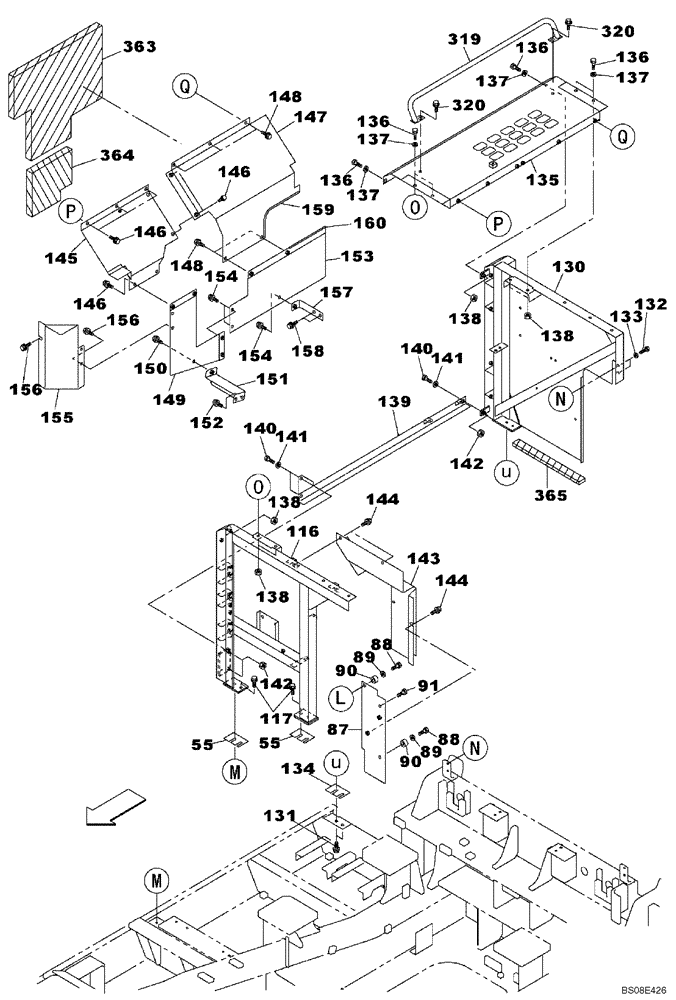

Запчасти Case CX700B (09-72) - COWLING - FRAMEWORK (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
55
KWN10180
ADJUSTING PLATE
2шт.
87
KWN0021
COVER
1шт.
88
627-12035
BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd
2шт.
89
150811A1
WASHER
2шт.
90
KHN13750
SPACER
2шт.
91
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
1шт.
116
KWN10300Y2
SUPPORT ASSY.
1шт.
117
166352A1
BOLT
4шт.
130
KWN10310Y2
SUPPORT ASSY.
1шт.
131
166352A1
BOLT
2шт.
132
627-12030
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd
2шт.
133
151161A1
WASHER
2шт.
134
KWN10180
ADJUSTING PLATE
2шт.
135
KWN10510
SUPPORT ASSY.
1шт.
136
627-12040
BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd
6шт.
137
150811A1
WASHER
6шт.
138
829-1412
NUT,M12, Cl 10.9
6шт.
139
KWN0020Y2
SUPPORT ASSY.
1шт.
140
627-12040
BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd
3шт.
141
150811A1
WASHER
3шт.
142
829-1412
NUT,M12, Cl 10.9
3шт.
143
KWN0022
COVER
1шт.
144
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
3шт.
145
KWN0023
COVER
1шт.
146
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
7шт.
147
KWN0024
COVER
1шт.
148
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
5шт.
149
KWN0025
COVER
1шт.
150
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
1шт.
151
KWN0130
SUPPORT
1шт.
152
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
2шт.
153
KWN10530
COVER
1шт.
154
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
3шт.
155
KWN10070
PROTECTION PLATE
1шт.
156
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
3шт.
157
KWN0121
SUPPORT
1шт.
158
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
2шт.
159
KHN2514
SEAL PROTECTION
1шт.
160
KWN0119
SEAL PROTECTION
1шт.
319
KWN0077Y2
GRAB RAIL
2шт.
320
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
4шт.
363
KWN0117
NOISE PROTECTION
1шт.
364
KWN0126
NOISE PROTECTION
1шт.
365
KHJ2554
SEAL
1шт.
Выбрано товаров: 44
