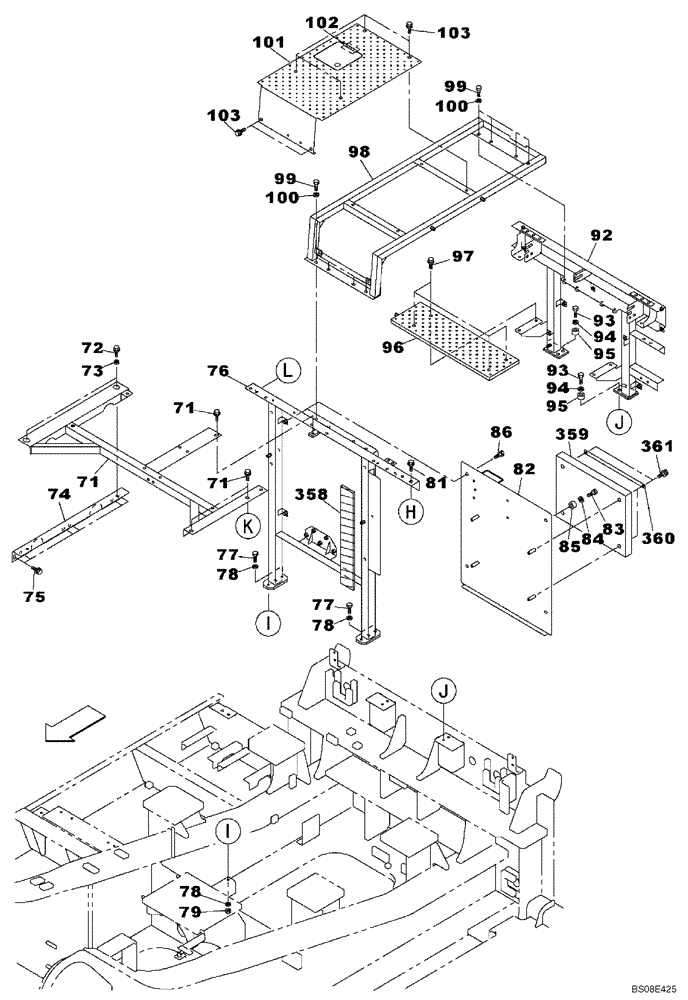

Запчасти Case CX700B (09-71) - COWLING - FRAMEWORK (09) - CHASSIS

71

KWN0039

FRAME

1шт.

72

166352A1

BOLT

5шт.

73

162409A1

WASHER

2шт.

74

KWN0062

SUPPORT

1шт.

75

166352A1

BOLT

6шт.

76

KWN0040

FRAME

1шт.

77

AES0399

BOLT,Full Thd

4шт.

78

150811A1

WASHER

8шт.

79

829-1412

NUT,M12, Cl 10.9

4шт.

81

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

82

KWN0065

PROTECTION PLATE

1шт.

83

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

3шт.

84

150811A1

WASHER

3шт.

85

KHN13750

SPACER

3шт.

86

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

92

KWN10230

FRAME

1шт.

93

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

94

150811A1

WASHER

4шт.

95

KHN13750

SPACER

4шт.

96

KWN0066

STEP

1шт.

97

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

98

KWN0042

FRAME

1шт.

99

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

8шт.

100

150811A1

WASHER

8шт.

101

KWN0122

STEP

Incl 102

1шт.

102

162283A1

HINGE

1шт.

103

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

358

KWN0089

SEAL

1шт.

359

KWN0080

FOAM

1шт.

360

KWN0083

SEAL RETAINER

2шт.

361

166345A1

BOLT

4шт.
