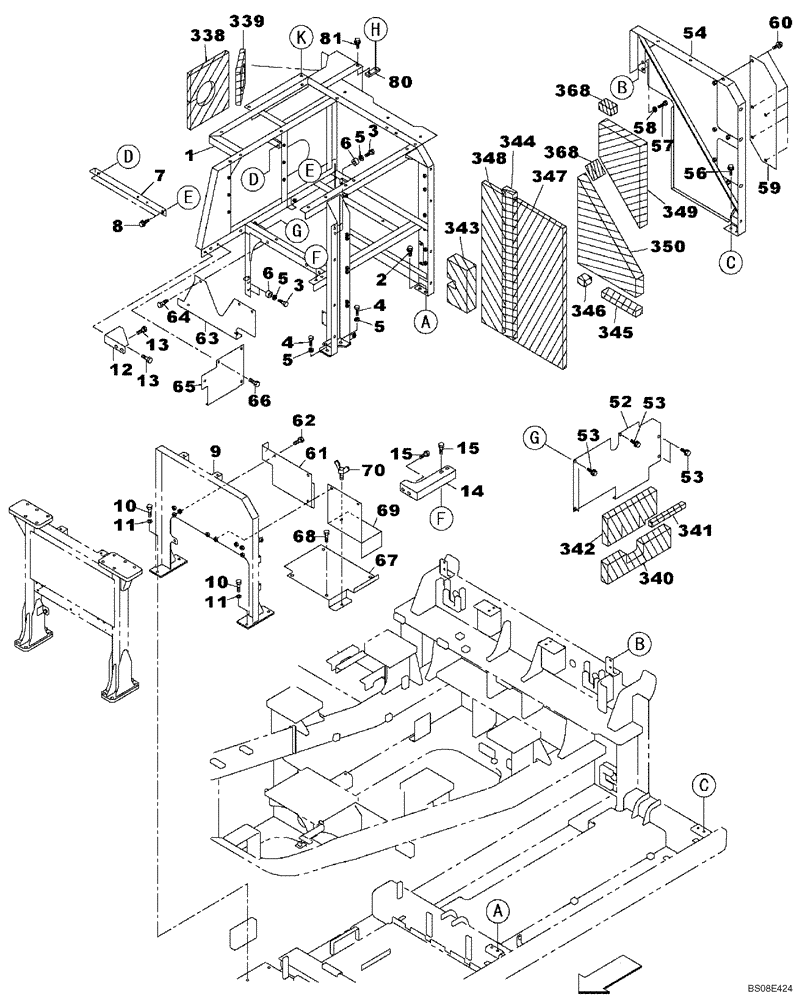

Запчасти Case CX700B (09-70) - COWLING - FRAMEWORK (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
KWN10320
SUPPORT ASSY.
1шт.
2
166352A1
BOLT
2шт.
3
627-12035
BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd
4шт.
4
627-12040
BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd
2шт.
5
150811A1
WASHER
6шт.
6
KHN13750
SPACER
4шт.
7
KWN0037
FRAME
1шт.
8
166352A1
BOLT
2шт.
9
KWN10350
SUPPORT ASSY.
1шт.
10
627-12035
BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd
4шт.
11
150811A1
WASHER
4шт.
12
KWN10330
SUPPORT
1шт.
13
166352A1
BOLT
4шт.
14
KWN10480
SUPPORT
1шт.
15
166352A1
BOLT
4шт.
52
KWN10360
COVER
1шт.
53
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
5шт.
54
KWN10110
SUPPORT ASSY.
1шт.
56
166352A1
BOLT
2шт.
57
627-12030
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd
2шт.
58
151161A1
WASHER
2шт.
59
KWN10120
PROTECTION PLATE
1шт.
60
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
5шт.
61
KWN10380
COVER
1шт.
62
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
3шт.
63
KWN10390
COVER
1шт.
64
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
3шт.
65
KWN10400
COVER
1шт.
66
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
4шт.
67
KWN10410
COVER
1шт.
68
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
4шт.
69
KWN10420
COVER
1шт.
70
KHN17030
SPECIAL BOLT
3шт.
80
KWN0063
PLATE
1шт.
81
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
2шт.
338
KWN0084
SEAL
1шт.
339
KWN0085
SEAL
1шт.
340
KWN0086
SEAL
1шт.
341
KLN10460
SEAL
1шт.
342
KWN10370
SEAL
1шт.
343
KWN0088
SEAL
1шт.
344
KWN0090
SEAL
1шт.
345
KWN0095
SEAL
1шт.
346
KWN0096
SEAL
1шт.
347
KWN0104
NOISE PROTECTION
1шт.
348
162441A1
NOISE PROTECTION
1шт.
349
KWN10100
NOISE PROTECTION
1шт.
350
KWN0106
NOISE PROTECTION
1шт.
368
KWN0093
SEAL
4шт.
Выбрано товаров: 49
