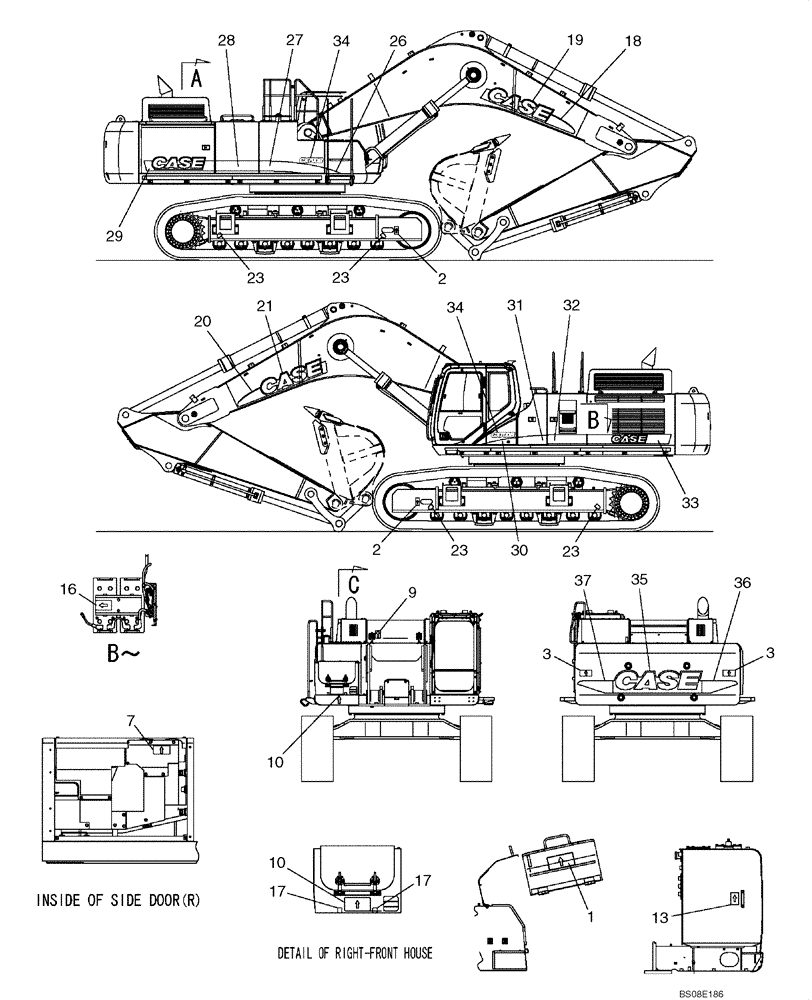

Запчасти Case CX700B (09-66) - DECALS (09) - CHASSIS

1

KWP10531

DECAL

DECAL, Lubrication Chart, Replaces KWP10530

1шт.

2

167327A1

WARNING DECAL

Grease Under Heavy Spring Pressure

2шт.

3

KHP1532

WARNING DECAL

Danger, Keep Clear

2шт.

7

KHP1535

WARNING DECAL

Caution, Hot Surfaces

1шт.

9

KHP1010

DECAL

Caution, Falling Engine Hood

1шт.

10

167324A1

WARNING DECAL

Danger, Stay Away From Machine If Close To Power Lines

1шт.

13

167328A1

DECAL

Notice, Check Hydraulic Fluids

1шт.

16

KHP1536

WARNING DECAL

Warning, Batteries Contain Acid And Explosive Gas

1шт.

17

KAJ4874

PLATE

2шт.

18

KSP0884

DECAL

CASE logo; Right Hand Side Of Boom; Models With 6.60 M Boom, Models Used For Mass Excavation

1шт.

18

KUP0130

DECAL

CASE logo; Right Hand Side Of Boom; Models With 7.70 M Boom

1шт.

19

KSP0885

DECAL

CASE logo; Right Hand Side Of Boom; Models With 6.60 M Boom, Models Used For Mass Excavation

1шт.

19

KUP0131

DECAL

CASE logo; Right Hand Side Of Boom; Models With 7.70 M Boom

1шт.

20

KSP0890

DECAL

CASE logo; Left Hand Side Of Boom; Models With 6.60 M Boom, Models Used For Mass Excavation

1шт.

20

KUP0132

DECAL

CASE logo; Left Hand Side Of Boom; Models With 7.70 M Boom

1шт.

21

KSP0891

DECAL

CASE logo; Left Hand Side Of Boom; Models With 6.60 M Boom, Models Used For Mass Excavation

1шт.

21

KUP0133

DECAL

CASE logo; Left Hand Side Of Boom; Models With 7.70 M Boom

1шт.

23

H7947565

DECAL

4шт.

26

KWP10540

DECAL

Stripe, Right Hand Side of Machine

1шт.

27

KWP10550

DECAL

Stripe, Right Hand Side of Machine

1шт.

28

KWP10560

DECAL

Stripe, Right Hand Side of Machine

1шт.

29

KWP10570

DECAL

CASE logo; Right Hand Side of Machine

1шт.

30

KBP11360

DECAL

Stripe, Left Hand Side of Machine

1шт.

31

KWP10580

DECAL

Stripe, Left Hand Side of Machine

1шт.

32

KWP10590

DECAL

Stripe, Left Hand Side of Machine

1шт.

33

KWP10600

DECAL

CASE logo; Left Hand Side of Machine

1шт.

34

KWP10610

DECAL

Model Designation; CX700B

2шт.

34

84573956

DECAL

CX700B - New Look, Start Year: 01-NOV-11

2шт.

35

KWP10620

DECAL

CASE logo; Rear Of Machine

1шт.

36

KWP10630

DECAL

Right Rear

1шт.

37

KWP10640

DECAL

Left Rear

1шт.
