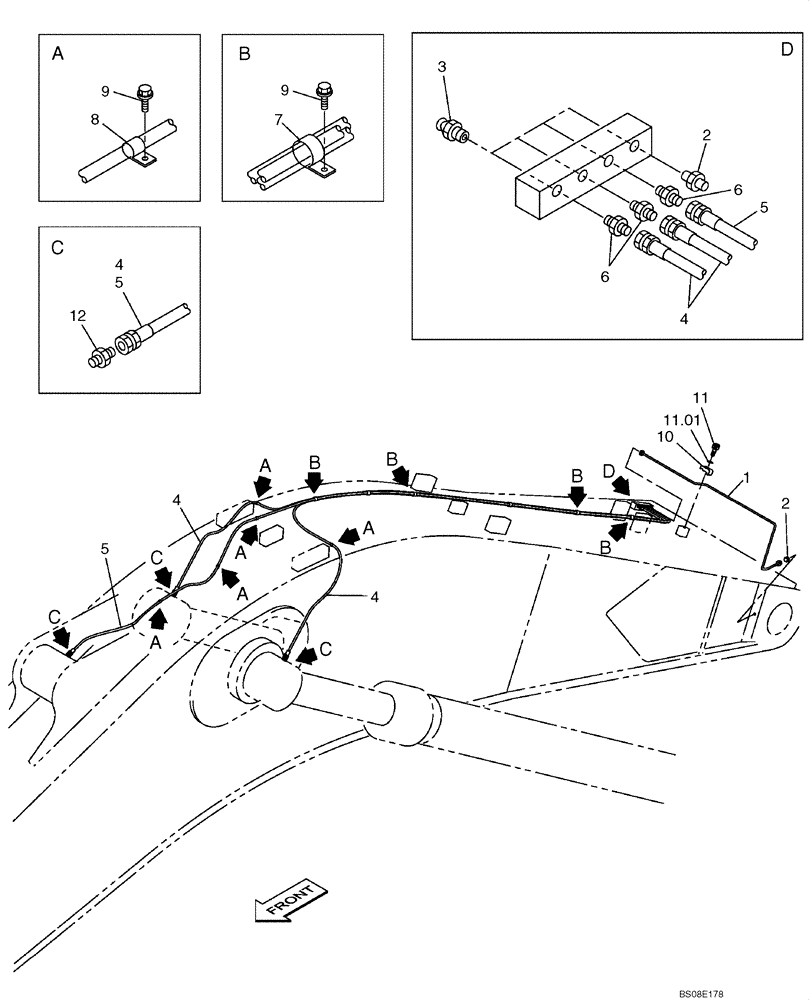

Запчасти Case CX700B (09-48A) - LUBRICATION CIRCUIT - MONOBLOCK BOOM (6.60 M) (09) - CHASSIS

1

KWV10290

HYD TUBE,6 mm ID x 8 mm OD

1шт.

2

152599A1

MULTIPOLE CONNECTOR

2шт.

3

153603A1

ADAPTER

4шт.

4

KHJ2812

HOSE,4100.00 mm

Replaces KHJ1772

1шт.

4

KHJ2811

HOSE,4000.00 mm

Replaces KHJ1772

1шт.

5

KHJ2813

HOSE,4200.00 mm

Replaces KHJ10270

1шт.

6

KRJ4050

ADAPTER

3шт.

7

162149A1

COLLAR

4шт.

8

162147A1

CLIP

5шт.

9

166345A1

BOLT

M8 x 20

9шт.

10

168377A1

CLAMP

1шт.

11

167182A1

BOLT,Sems, M8 x 25mm

Replaces 627-8030

1шт.

11.01

153081A1

WASHER

W M8, If Used

1шт.

12

150603A1

PRESSURE SWITCH

3шт.
