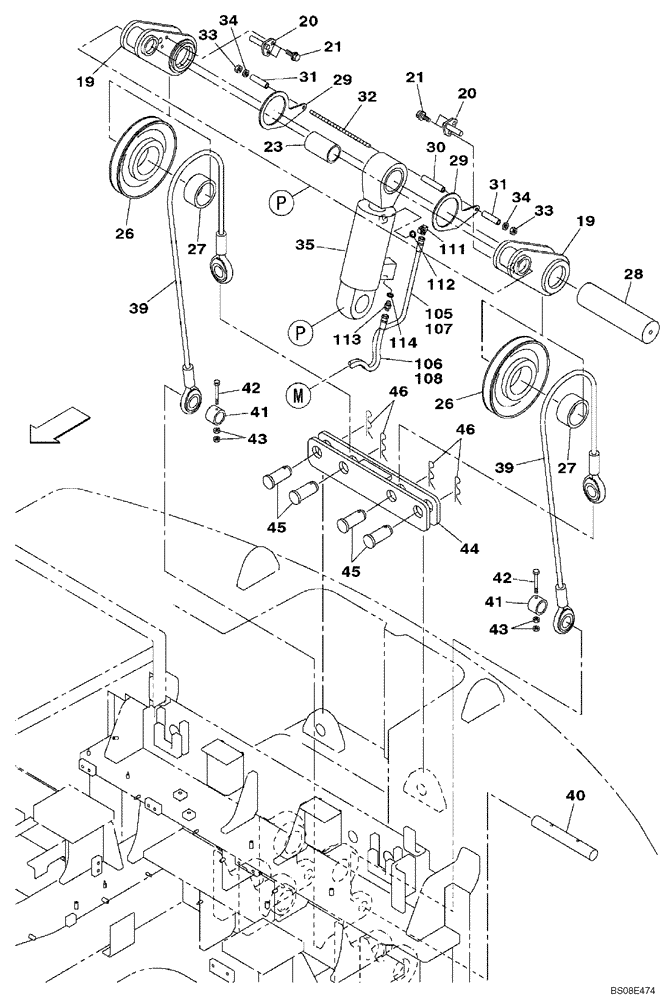

Запчасти Case CX700B (09-36) - SELF-DETACHING COUNTERWEIGHT SYSTEM (09) - CHASSIS

19

KUB0158

LINK

2шт.

20

KUB0159

PLATE

2шт.

21

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

23

KUB0179

SPACER

1шт.

26

KUB0165

PULLEY

2шт.

27

KUB0180

BUSHING

2шт.

28

KUB0166

PIN

1шт.

29

KUB0160

PLATE

2шт.

30

KUB0170

SPACER

1шт.

31

KUB0171

SPACER

2шт.

32

KUB0178

ROD,THREADED

THREADED ROD

1шт.

33

829-1412

NUT,M12, Cl 10.9

2шт.

34

150811A1

WASHER

W 12

2шт.

35

KUB0156

HYDRAULIC CYLINDER

See Fig. 08-20

1шт.

39

KUB0164

WIRE ROPE

2шт.

40

KUB0174

PIN

1шт.

41

KUB0176

COLLAR

2шт.

42

102R008Y080R

BOLT

M8 x 80

2шт.

43

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

44

KUB0172

BRACKET

1шт.

45

KUB0161

PIN

4шт.

46

C4E6684

SPLIT PIN/SAFETY PIN

4шт.

105

KAJ4281

HYDRAULIC HOSE,9.50 mm ID x 1400.00 mm

See Fig. 08-18

1шт.

106

KWJ11030

HYDRAULIC HOSE,9.52 mm ID x 1150.00 mm

See Fig. 08-18

1шт.

107

158063A1

PLASTIC-RUBBER TUBE

1шт.

108

150774A1

PLASTIC-RUBBER TUBE

1шт.

111

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 112

1шт.

112

154475A1

O-RING

1шт.

113

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 114

1шт.

114

154475A1

O-RING

1шт.
