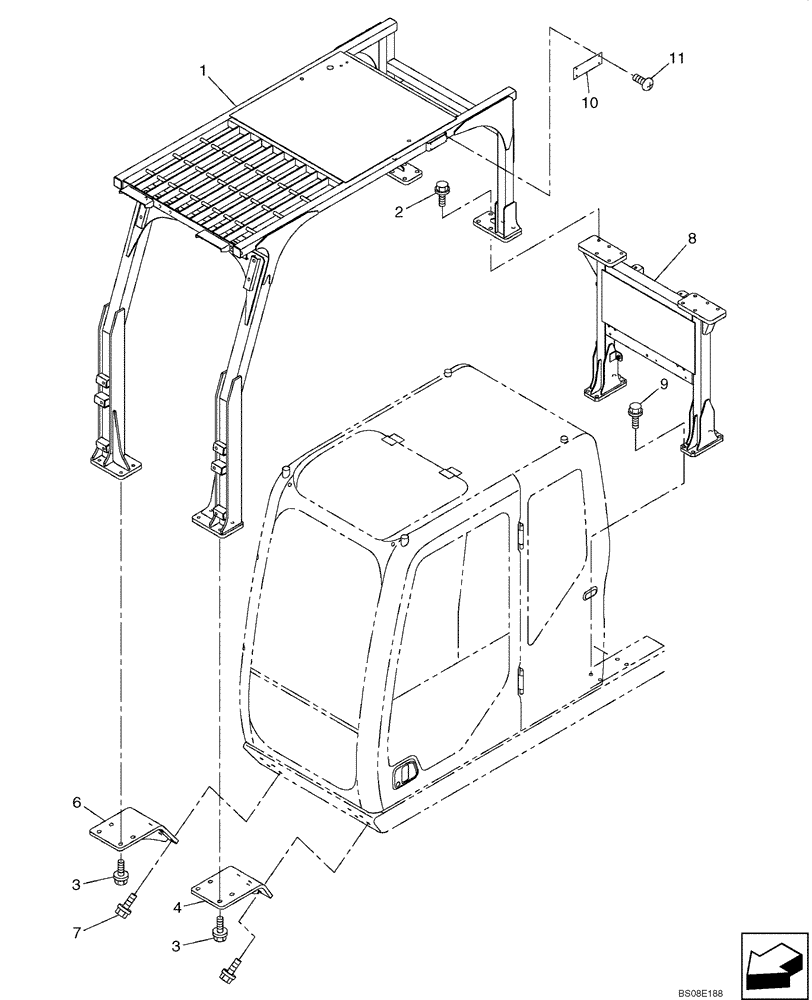

Запчасти Case CX700B (09-33B) - CAB HEAD GUARD (09) - CHASSIS

1

KHN18960

PROTECTOR

Head

1шт.

2

166348A1

BOLT

10шт.

3

165930A1

BOLT,Sems, M16 x 55mm

8шт.

4

KHN19080

BRACKET

1шт.

5

165930A1

BOLT,Sems, M16 x 55mm

4шт.

6

KHN19090

BRACKET

1шт.

7

165930A1

BOLT,Sems, M16 x 55mm

4шт.

8

KHN18971

BRACKET

BRACKET, Replaces KHN18970

1шт.

9

166349A1

BOLT,Sems, M16 x 65mm

Replaces 165930A1

8шт.

10

NSS

NOT SOLD SEPARAT

Name Plate

1шт.

11

168438A1

DRIVE SCREW

4шт.

166352A1

BOLT

Where Used

4шт.

166351A1

BOLT,Sems, M10 x 20mm

Where Used

2шт.
