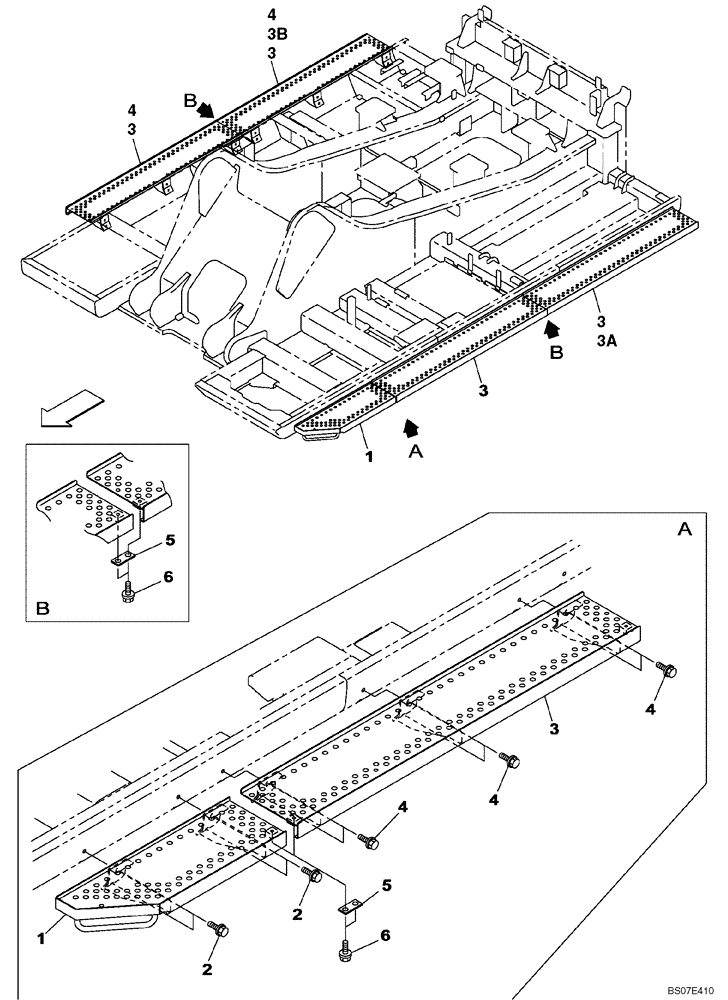

Запчасти Case CX700B (09-08) - CATWALK (09) - CHASSIS

1

KWB0021

WALKWAY

CATWALK

1шт.

2

166352A1

BOLT

M12 x 30

4шт.

3

KWB0022

WALKWAY

CATWALK

2-4шт.

3a

KWB10410

WALKWAY

CATWALK

1шт.

3b

KWB10420

WALKWAY

CATWALK

1шт.

4

166352A1

BOLT

M12 x 30

24шт.

5

KUB0153

PLATE

3шт.

6

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.
