(09-06) - COUNTERWEIGHT - SOUNDPROOFING - SELF-DETACHING COUNTERWEIGHT SYSTEM

Запчасти Case CX700B (09-06) - COUNTERWEIGHT - SOUNDPROOFING - SELF-DETACHING COUNTERWEIGHT SYSTEM (09) - CHASSIS

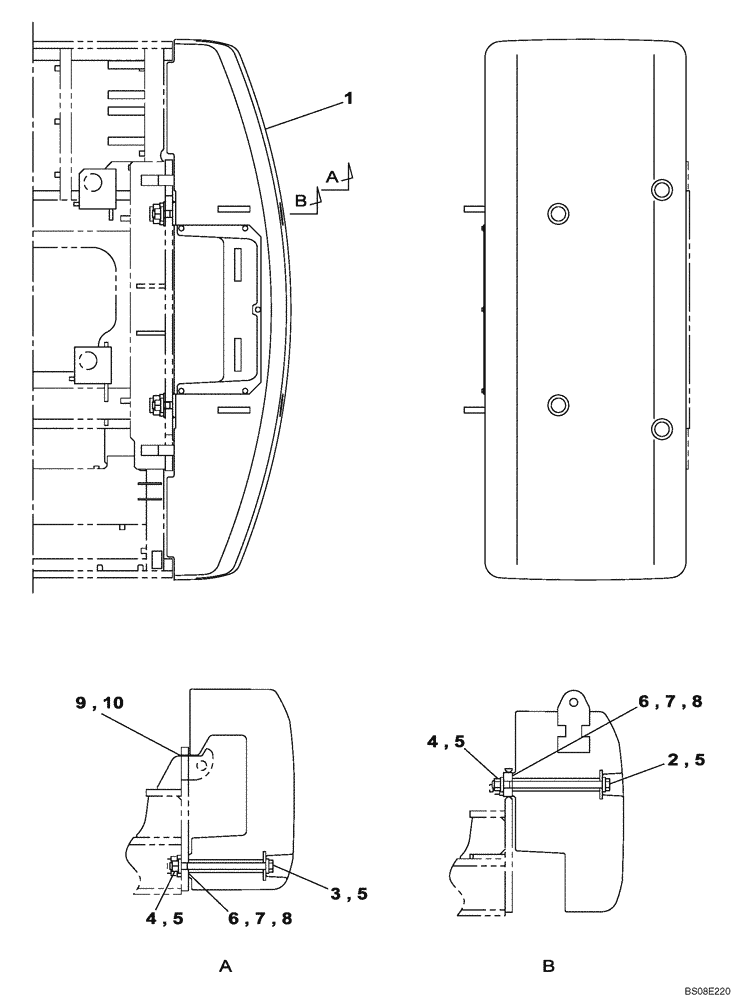

Схема запчастей Case CX700B - (09-06) - COUNTERWEIGHT - SOUNDPROOFING - SELF-DETACHING COUNTERWEIGHT SYSTEM (09) - CHASSIS
3
8
5
4
7
1
8
4
10
5
6
9
7
6
5
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KWB10290Y2

WEIGHT PACKAGE

Replaces KWB10290

1шт.

2

KWB10340

BOLT

M42 x 710

2шт.

3

KHB0348

BOLT

M42 x 620

2шт.

4

KUB10970

NUT

U M42 (Replaces 166UR042VN)

4шт.

5

KUB10960

WASHER

W42 (Replaces 150400A1)

8шт.

6

151020A1

ADJUSTING PLATE

2.0 mm

4шт.

7

151023A1

ADJUSTING PLATE

3.2 mm

4шт.

8

151028A1

ADJUSTING PLATE

4.5 mm

4шт.

9

KUB0110

SHIM,2.3mm Thk

2шт.

10

KUB0111

SHIM,3.2mm Thk

2шт.
