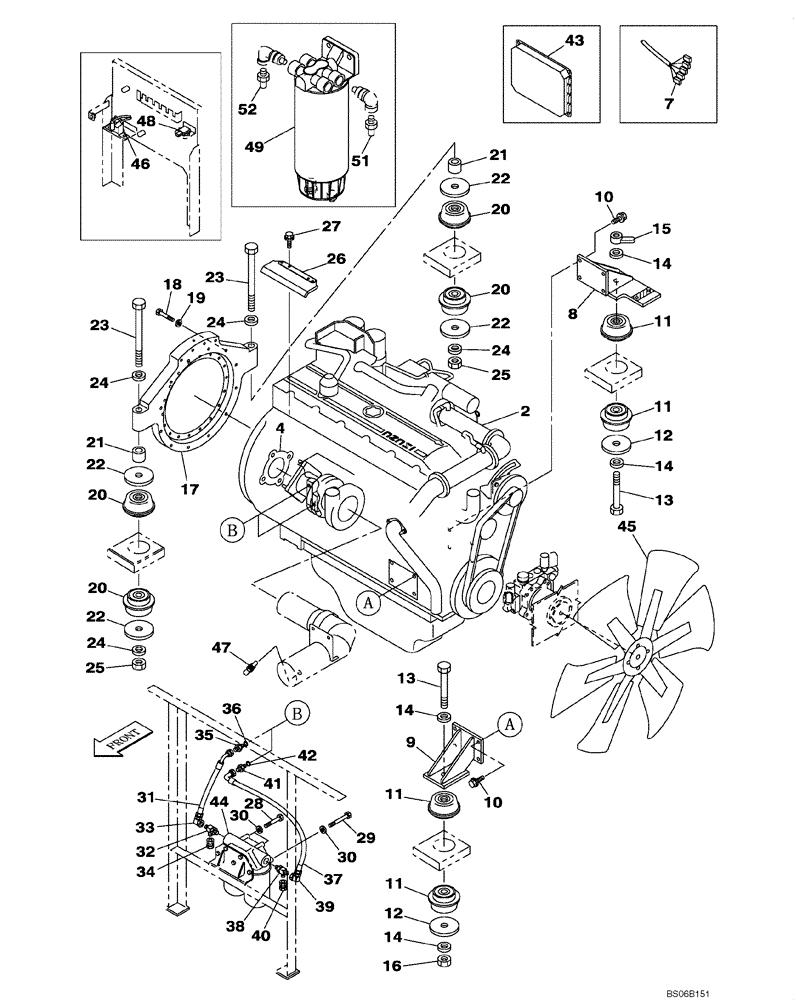

Запчасти Case CX700B (02-01) - ENGINE MOUNTING - ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
2
KWH0013
ENGINE ASSEMBLY
ENGINE ASSY Incl. Figures 02-07 To 02-35, 03-04 To 03-09, 04-14 To 04-18
1шт.
2
KWH0013EC
CORE-ENGINE
Environmental Core, For N.A. Only
1шт.
4
REF
INSTRUCTION
Gasket; See Figure 02-28 Ref. 9
1шт.
7
REF
INSTRUCTION
Harness; See Figure 04-18 Ref. 13
1шт.
8
KWH0030
ENGINE MOUNT
1шт.
9
KUH0150
ENGINE MOUNT
1шт.
10
166470A1
BOLT,M14, W/ Wshr
M14 x 40
8шт.
11
KUH0115
SILENTBLOC
4шт.
12
KUH0013
PLATE
2шт.
13
102R024Y200R
BOLT
M24 x 200
2шт.
14
150822A1
WASHER,25mm ID x 48mm OD x 6mm Thk
W24
4шт.
15
KWH0033
SPECIAL NUT
1шт.
16
829-1424
NUT,M24, Cl 10
1шт.
17
KUH10020
FLANGE
1шт.
18
827-12085
BOLT,Hex, M12 x 1.75 x 85mm, Cl 10.9
M12 x 85
12шт.
19
150811A1
WASHER
W12
12шт.
20
KUH10370
SILENTBLOC
Replaces KUH0114
4шт.
21
KUH0152
SPACER
2шт.
22
KUH0013
PLATE
4шт.
23
KUH0151
BOLT
M24 x 330
2шт.
24
150822A1
WASHER,25mm ID x 48mm OD x 6mm Thk
W24
4шт.
25
829-1424
NUT,M24, Cl 10
2шт.
26
KWH10070
PROTECTION PLATE
1шт.
27
167182A1
BOLT,Sems, M8 x 25mm
M8 x 25
4шт.
28
102R010Y110R
BOLT
M10 x 110
2шт.
29
102R010Y140R
BOLT
M10 x 140
3шт.
30
150409A1
WASHER
W M10
5шт.
31
KWH0031
HYDRAULIC HOSE,25.10 mm ID x 490.00 mm
1шт.
32
ABV0829
TEE
1шт.
33
BHA1110
GASKET
1шт.
34
153683A1
PLUG
1шт.
35
151655A1
HYD CONNECTOR,1" NPT O-Ring x 1" NPT
Incl. 36
1шт.
37
KWH0032
HYDRAULIC HOSE,25.40 mm ID x 680.00 mm
1шт.
38
ABV0829
TEE
1шт.
39
BHA1110
GASKET
1шт.
40
153683A1
PLUG
1шт.
41
151655A1
HYD CONNECTOR,1" NPT O-Ring x 1" NPT
Incl. 42
1шт.
43
REF
INSTRUCTION
Controller, See Figure 04-14 Ref 613
1шт.
44
REF
INSTRUCTION
Oil Filter; Figure 02-30 Ref. 496
1шт.
45
REF
INSTRUCTION
Fan; Figure 02-27 Ref. 1
1шт.
46
REF
INSTRUCTION
Relay; See Figure 04-14 Ref. 424
1шт.
47
REF
INSTRUCTION
Sensor; See Figure 04-14 Ref. 608
1шт.
48
REF
INSTRUCTION
Sensor; See Figure 04-14 Ref. 520
1шт.
49
REF
INSTRUCTION
See Figure 03-07 Ref. 1
1шт.
51
KHH10660
FITTING
1шт.
52
KHH10670
FITTING
1шт.
Выбрано товаров: 48
