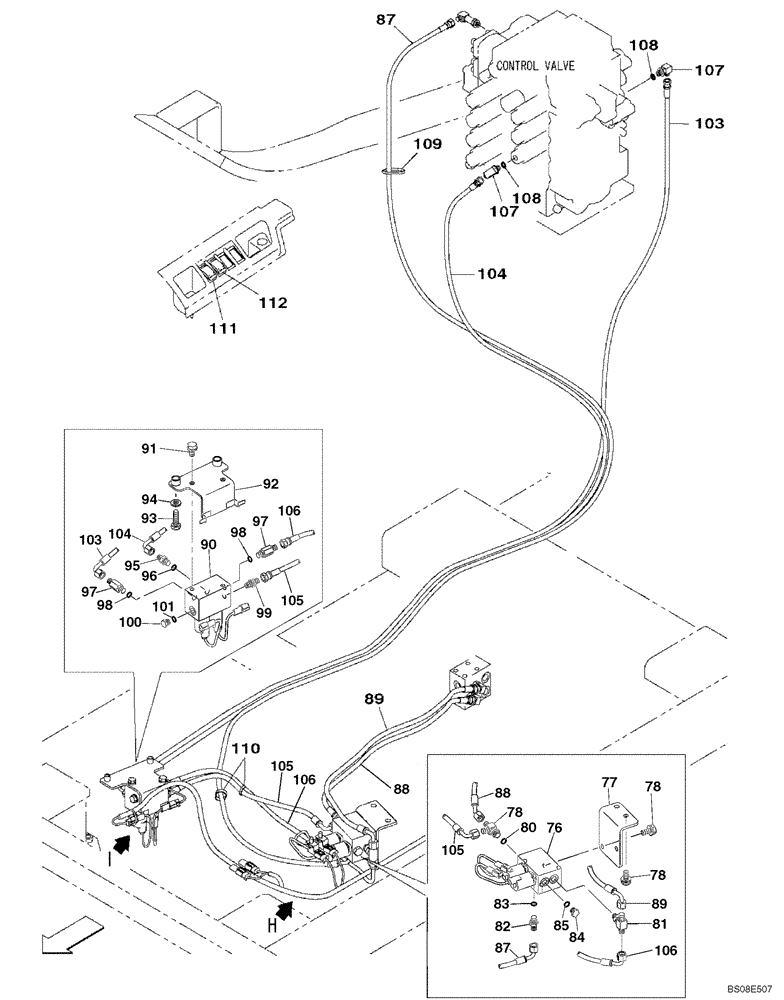

Запчасти Case CX700B (08-51) - HYDRAULIC CIRCUIT - OPTIONAL - 3-WAY (08) - HYDRAULICS

76

KHJ14000

VALVE SECTION

See Fig.08-80

1шт.

77

KHJ17970

BRACKET

1шт.

78

166351A1

BOLT,Sems, M10 x 20mm

4шт.

79

159497A1

TEE

Incl. 80

1шт.

80

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

81

167321A1

TEE

1шт.

82

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 83

1шт.

83

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

84

159002A1

PLUG

Incl. 85

2шт.

85

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

87

KHJ17790

HOSE

6x4900

1шт.

88

KHJ14650

HYDRAULIC HOSE

6x650

1шт.

98

KHJ2048

HOSE,6.3mm ID x 750mm L

6x800

1шт.

90

KHJ14000

VALVE SECTION

See Fig. 08-80

1шт.

91

166351A1

BOLT,Sems, M10 x 20mm

M10 x 20

2шт.

92

KHJ14680

SUPPORT

1шт.

93

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

94

150409A1

WASHER

2шт.

95

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 96

1шт.

96

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

97

162554A1

FITTING

Incl. 98

2шт.

98

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

99

161841A1

HYD CONNECTOR

1шт.

100

159002A1

PLUG

Incl. 101

1шт.

101

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

103

KHJ14800

HYDRAULIC HOSE

6X4300

1шт.

104

KHJ14790

HYDRAULIC HOSE

6X4100

1шт.

105

KHJ2180

HOSE,6.3mm ID x 500mm L

6X500

1шт.

106

KHJ2194

HOSE,6.3mm ID x 650mm L

6X650

1шт.

107

156554A1

ELBOW

Incl. 108

2шт.

108

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

109

150071A1

MOUNTING CLIP

380 mm

1шт.

110

150496A1

MOUNTING CLIP

250 mm

2шт.

111

KHR14450

SWITCH,Multipurpose

1шт.

112

KHR14460

SWITCH,Low Flow

1шт.

113

KHP13320

DECAL

1шт.
