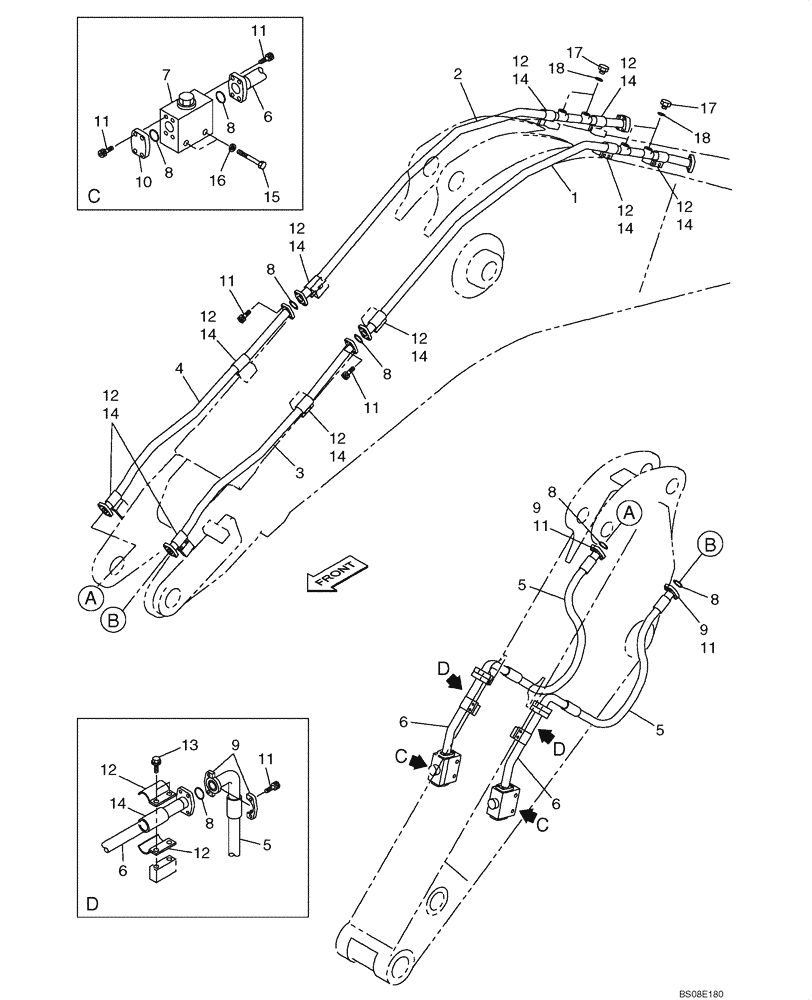

Запчасти Case CX700B (08-49) - HYDRAULIC CIRCUIT - PICK HAMMER - BOOM (6.60 M), DIPPER (3.00 M) (08) - HYDRAULICS

1

KWV10250

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

2

KWV10260

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

3

KWV10270

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

4

KWV10280

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

5

KWV11770

HYDRAULIC HOSE

Replaces KWV10560

2шт.

6

KWV10520

HYD TUBE,38.6 mm ID x 48.6 mm OD

2150 mm

2шт.

7

KUV0311

VALVE

See Figure 08-28

2шт.

8

168211A1

O-RING

10шт.

9

KTJ0169

FLANGE

8шт.

10

KUP0008

COUPLING FLANGE

2шт.

11

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

40шт.

12

KWV0089

CLAMP

24шт.

13

165929A1

BOLT,Sems, M16

Replaces 166348A1

4шт.

14

KWV11560

GROMMET

Replaces KWV0102

12шт.

15

827-16130

BOLT,Hex, M16 x 2 x 130mm, Cl 10.9

4шт.

16

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

W 16

4шт.

17

162659A1

PLUG

Incl. 18

4шт.

18

154523A1

O-RING

If Used

1шт.
