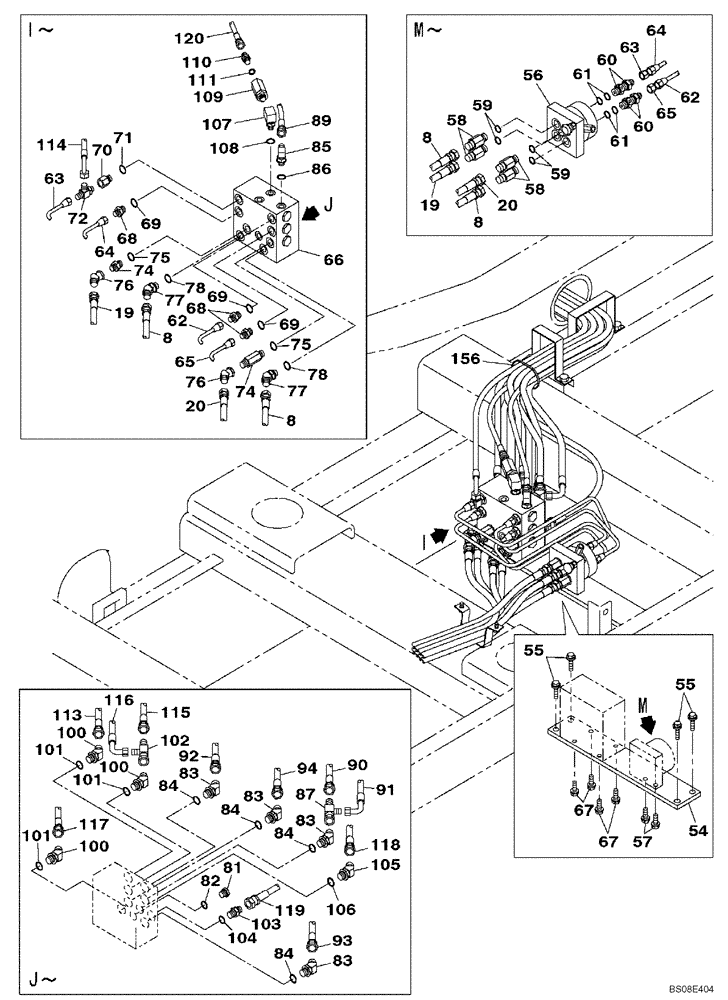

Запчасти Case CX700B (08-44) - PILOT CONTROL LINES, ATTACHMENT - TWO WAY (08) - HYDRAULICS

8

159211A1

HYDRAULIC HOSE

6 X 2000

4шт.

19

159217A1

HYDRAULIC HOSE

1850 mm

2шт.

20

KRJ4381

HYDRAULIC HOSE,9.50 mm ID x 1800.00 mm

2шт.

54

KHJ13750

SUPPORT

1шт.

55

166352A1

BOLT

4шт.

56

KHJ12080

CONTROL BLOCK

See Fig. 08-27

1шт.

57

166052A1

BOLT

2шт.

58

159226A1

ADAPTER

Incl. 59

4шт.

59

154475A1

O-RING

1шт.

60

KHJ1821

NIPPLE, LUBE

NIPPLE Incl. 61

4шт.

61

154475A1

O-RING

1шт.

62

KHJ15390

HYD TUBE,6.6 mm ID x 8 mm OD

1шт.

63

KWJ11470

HYD TUBE

1шт.

64

KHJ15410

HYD TUBE,6.6 mm ID x 8 mm OD

1шт.

65

KHJ15420

HYD TUBE,6.6 mm ID x 8 mm OD

1шт.

66

KWJ11301

VALVE SECTION

Replaces KWJ11300, Detail of Valve not available at time of printing.

1шт.

67

166347A1

BOLT,Sems, M10 x 30mm

4шт.

68

KHJ1821

NIPPLE, LUBE

NIPPLE Incl. 69

3шт.

69

154475A1

O-RING

1шт.

70

168855A1

STUD

Incl. 71

1шт.

71

154475A1

O-RING

1шт.

72

KHJ2132

TEE

Incl. 73

1шт.

73

154467A1

O-RING,10.8mm ID x 2.4mm Width

Not Shown

1шт.

74

KAJ2351

FITTING

Incl. 75

2шт.

75

154475A1

O-RING

1шт.

76

KHJ1739

ELBOW

2шт.

77

157584A1

ELBOW

Incl. 78

2шт.

78

154475A1

O-RING

1шт.

81

159002A1

PLUG

Incl. 82

1шт.

82

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

83

157584A1

ELBOW

Incl. 84

4шт.

84

154475A1

O-RING

1шт.

85

153559A1

ELBOW

Incl. 86

1шт.

86

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

87

KHJ2234

TEE

1шт.

89

157969A1

HOSE

6 X 2600

1шт.

90

159080A1

HOSE ASSY.

6 X 2450

1шт.

91

KMJ1992

HOSE

6 X 2500

1шт.

92

157969A1

HOSE

6 X 2600

1шт.

93

157968A1

HOSE

6 X 2400

1шт.

94

164115A1

HYDRAULIC HOSE

6 X 2300

1шт.

100

157584A1

ELBOW

Incl. 101

3шт.

101

154475A1

O-RING

1шт.

102

KHJ2234

TEE

1шт.

103

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 104

1шт.

104

154475A1

O-RING

1шт.

105

150933A1

ELBOW

Incl. 106

1шт.

106

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

107

KHJ0719

ELBOW

Incl. 108

1шт.

108

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

109

KHJ10790

FILTER SCREEN

1шт.

110

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 111

1шт.

111

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

113

157971A1

HOSE

6 X 2800

1шт.

115

162113A1

HOSE

1шт.

116

159232A1

HYDRAULIC HOSE

6 X 2700

1шт.

117

162194A1

HOSE ASSY.

6 X 2600

1шт.

118

152264A1

HOSE,6.3mm ID x 2200mm L

1шт.

119

162194A1

HOSE ASSY.

6 X 2600

1шт.

120

159433A1

HOSE ASSY.

1шт.

156

150071A1

MOUNTING CLIP

7шт.
