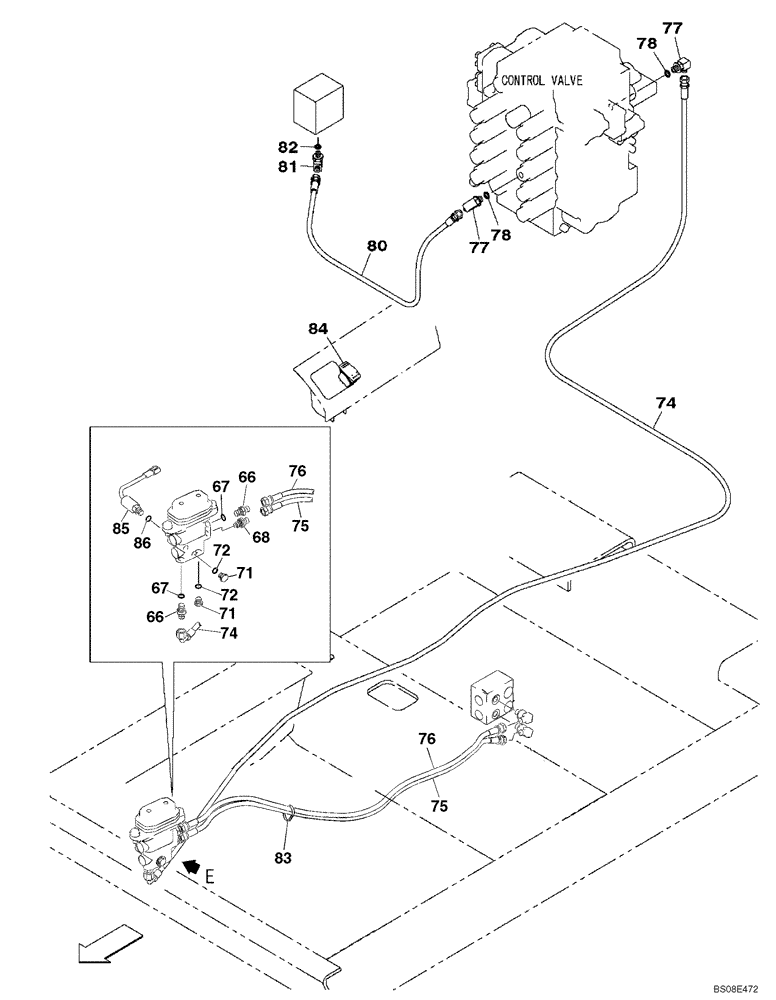

Запчасти Case CX700B (08-26) - HYDRAULIC CIRCUIT - SINGLE ACTING CIRCUIT (08) - HYDRAULICS

66

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 67

2шт.

67

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

68

161841A1

HYD CONNECTOR

1шт.

71

159002A1

PLUG

Incl. 72

2шт.

72

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

74

KHJ19010

HOSE

6x4400

1шт.

75

KHJ2050

HOSE,6.3mm ID x 1000mm L

1шт.

76

KHJ2050

HOSE,6.3mm ID x 1000mm L

1шт.

77

156554A1

ELBOW

Incl. 78

2шт.

78

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

80

151877A1

HOSE,63.00 mm ID x 1200.00 mm

1шт.

81

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 82

1шт.

82

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

83

150496A1

MOUNTING CLIP

1шт.

84

KHR14060

SWITCH,Breaker

1шт.

85

KHR10820

PRESSURE SWITCH

Incl. 86

1шт.

86

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
