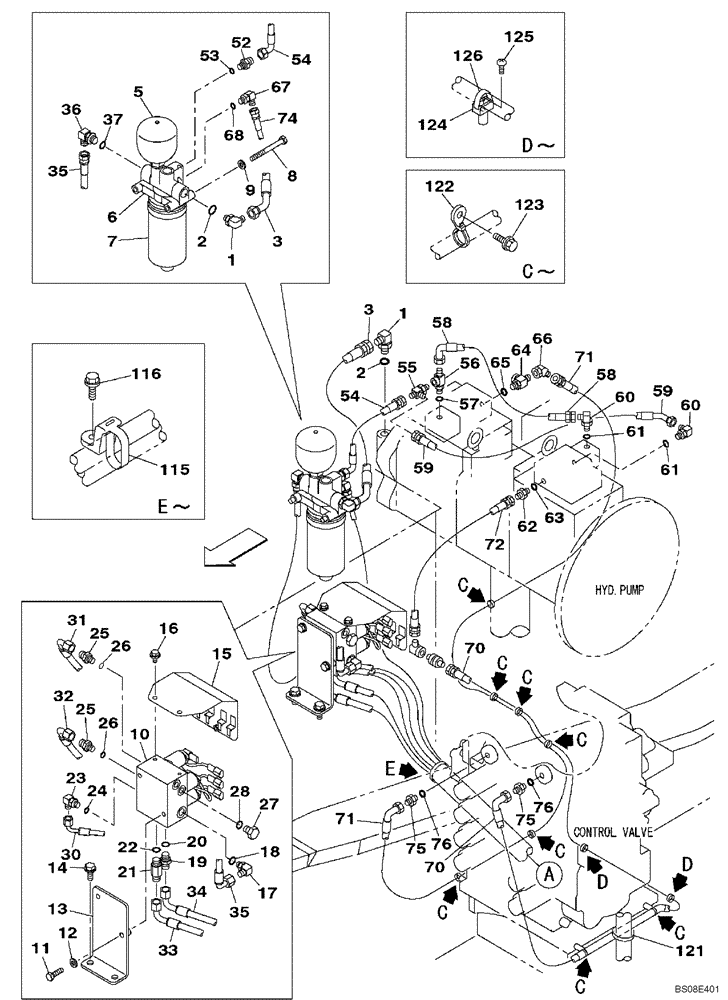

Запчасти Case CX700B (08-24) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

1

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 2

2шт.

2

154487A1

O-RING

1шт.

3

KHJ10210

HYDRAULIC HOSE,12.70 mm ID x 750.00 mm

1шт.

4

KHJ19020

ACCUMULATOR

Incl. 5-7

1шт.

5

KHJ17540

ACCUMULATOR

1шт.

6

KHJ17720

FILTER HEAD

1шт.

7

KHJ17730

HYDRAULIC OIL FILTER

1шт.

8

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

2шт.

9

150409A1

WASHER

2шт.

10

KHJ14520

SOLENOID VALVE

See Fig. 08-74

1шт.

11

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

12

150409A1

WASHER

2шт.

13

KHJ14960

SUPPORT

1шт.

14

166352A1

BOLT

2шт.

15

KHJ16220

COVER

1шт.

16

166345A1

BOLT

2шт.

17

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 18

1шт.

18

154475A1

O-RING

1шт.

19

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 20

1шт.

20

154475A1

O-RING

1шт.

21

159226A1

ADAPTER

Incl. 22

1шт.

22

154475A1

O-RING

1шт.

23

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 24

1шт.

24

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

25

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 26

2шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

27

159002A1

PLUG

Incl. 28

1шт.

28

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

30

KRJ4750

HOSE,410.00 mm

1шт.

31

KBJ2640

HOSE

3300 mm

1шт.

32

167352A1

HOSE,2500.00 mm

4 X 2500

1шт.

33

KHJ19110

HOSE

9 X 1900

1шт.

34

MPJ5480

HOSE

6 x 42

1шт.

35

167873A1

HYDRAULIC HOSE,9.50 mm ID x 400.00 mm

1шт.

36

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 37

1шт.

37

154475A1

O-RING

1шт.

52

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 53

1шт.

53

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

54

KAP0632

HYDRAULIC HOSE

500 mm

1шт.

55

KHJ2130

TEE

1шт.

56

159497A1

TEE

Incl. 57

1шт.

57

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

58

161483A1

HOSE ASSY.

1шт.

59

KHJ16200

HYDRAULIC HOSE,6.35 mm ID x 400.00 mm

1шт.

60

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 61

2шт.

61

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

62

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 63

1шт.

63

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

64

167666A1

FITTING

Incl. 65

1шт.

65

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

66

KHJ1222

ELBOW

1шт.

67

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 68

1шт.

68

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

70

KHJ11970

HYDRAULIC HOSE,6.35 mm ID x 2700.00 mm

1шт.

71

KHJ11980

HYDRAULIC HOSE,6.35 mm ID x 3300.00 mm

1шт.

72

167866A1

HYDRAULIC HOSE,6.30 mm ID x 700.00 mm

1шт.

74

KHJ12870

HYDRAULIC HOSE

6 X 4400

1шт.

75

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 76

3шт.

76

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

115

KHR2581

CLAMP

3шт.

116

KHJ1215

BOLT,Spcl

3шт.

121

150071A1

MOUNTING CLIP

5шт.

122

KHR2584

CLAMP

8шт.

123

KHJ1215

BOLT,Spcl

8шт.

124

150860A1

COLLAR

2шт.

125

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

126

150496A1

MOUNTING CLIP

2шт.
