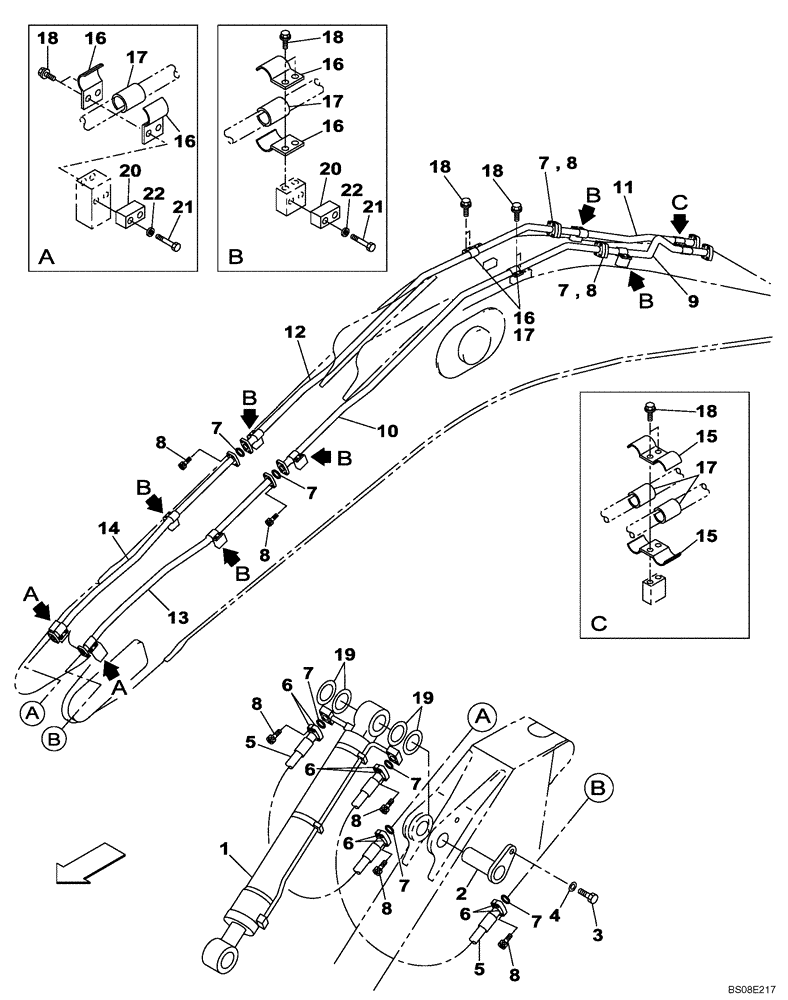

Запчасти Case CX700B (08-15) - HYDRAULICS - BUCKET CYLINDER - BOOM (7.70 M) - ARM (4.11 M) (08) - HYDRAULICS

1

KWV0013

BUCKET CYLINDER

See Figure 08-89

1шт.

2

KWV0046

PIN

1шт.

3

102R020Y035R

BOLT

M20 x 35

1шт.

4

KWV0090

SPACER

1шт.

5

KWV11490

HYDRAULIC HOSE

2300 mm

2шт.

6

150124A1

FLANGE

8шт.

7

164450A1

O-RING

8шт.

8

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

32шт.

9

KWV10450

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

10

KWV11580

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

11

KWV10470

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

12

KWV11590

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

13

KWV11300

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

14

KWV11310

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

15

KWV0086

CLAMP

2шт.

16

KWV0087

CLAMP

20шт.

17

KWV11570

GROMMET

12шт.

18

165929A1

BOLT,Sems, M16

M16 x 50

26шт.

19

KMV1518

SHIM,0.6mm Thk

1шт.

20

KWV0115

SPACER

8шт.

21

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

16шт.

22

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

W 16

16шт.
