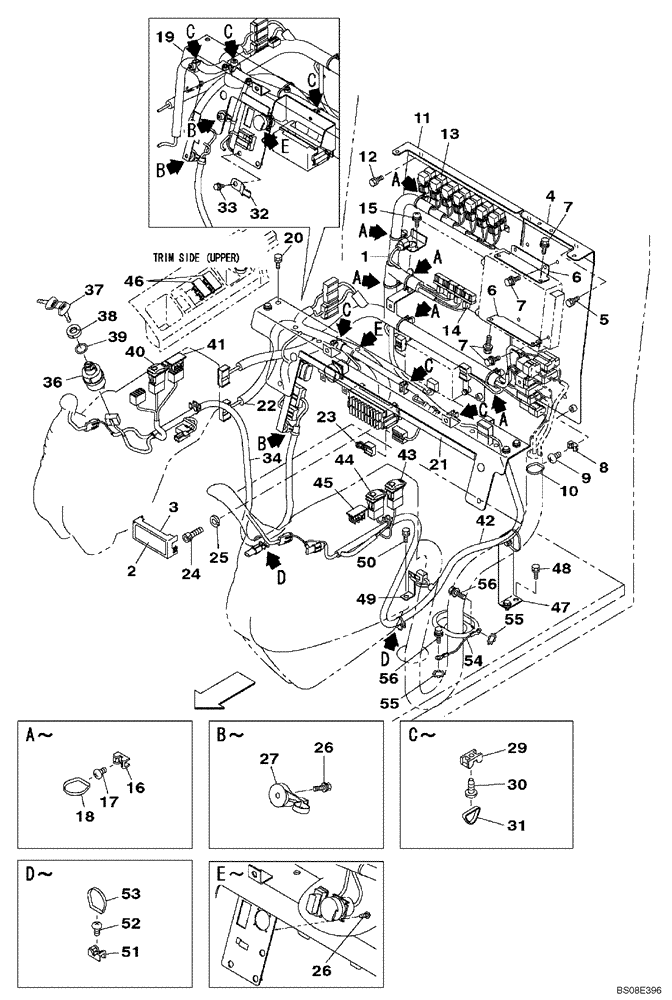

Запчасти Case CX470B (04-06) - ELECTRICAL - CAB (04) - ELECTRICAL SYSTEMS

1

KHR18801

HARNESS

WIRE

1шт.

4

KHR13450

BRACKET

1шт.

5

166345A1

BOLT

M8X16

4шт.

6

KHR13480

BRACKET

2шт.

7

159602A1

BOLT,Sems, Hex, M6 x 16mm

M6X16

8шт.

8

150860A1

COLLAR

1шт.

9

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

10

150496A1

MOUNTING CLIP

250mm

1шт.

11

KHR13460

BRACKET

1шт.

12

166345A1

BOLT

M8X16

4шт.

13

KHR3802

RELAY

14шт.

15

159922A1

SCREW,Pan Hd, M5 x 20mm

M5X20

2шт.

16

150860A1

COLLAR

6шт.

17

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

6шт.

18

150496A1

MOUNTING CLIP

250mm

6шт.

19

KHR13472

BRACKET

1шт.

20

166345A1

BOLT

M8X16

4шт.

21

KHR14230

SEAL

1шт.

22

KHR15993

WIRE HARNESS

Replaces KHR18830

1шт.

23

KHR16700

WIRE HARNESS

1шт.

24

108R006Y020R

BOLT

M6X20

2шт.

25

892-11006

LOCK WASHER,M6

2шт.

26

145N003S008R

SCREW,Pan Hd, M3 x 8mm

M3X8

4шт.

27

KHR2583

CLAMP

2шт.

28

159602A1

BOLT,Sems, Hex, M6 x 16mm

M6X16

2шт.

29

150860A1

COLLAR

4шт.

30

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

4шт.

31

150496A1

MOUNTING CLIP

250mm

4шт.

32

KHR3748

COLLAR

1шт.

33

167518A1

BOLT

M8X16

1шт.

34

KHR16111

WIRE HARNESS

1шт.

35

KHR20050

IGNITION SWITCH

1шт.

36

KHR3078

IGNITION SWITCH

1шт.

37

KHR20070

IGNITION KEY

2шт.

38

KHR3080

CAP

1шт.

39

KHR3081

WASHER

1шт.

40

KHR15850

ROCKER SWITCH

Travel Alarm

1шт.

41

KHR10390

CAP

1шт.

42

KHR18810

HARNESS

1шт.

43

KHR14050

SWITCH,Emergency stop

1шт.

44

KHR19050

TOGGLE SWITCH,Fan Reverse

1шт.

45

KHR10390

CAP

1шт.

46

KHR10390

CAP

2шт.

47

KHR13490

BRACKET

1шт.

48

166345A1

BOLT

2шт.

49

KHR13500

BRACKET

1шт.

50

166345A1

BOLT

M8X16

1шт.

51

150860A1

COLLAR

2шт.

52

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

M8X16

2шт.

53

150496A1

MOUNTING CLIP

250mm

2шт.

54

KHR11240

GROUND CABLE

1шт.

55

893-11008

LOCK WASHER,Ext Tooth, M8

2шт.

56

167518A1

BOLT

M8X16

2шт.
