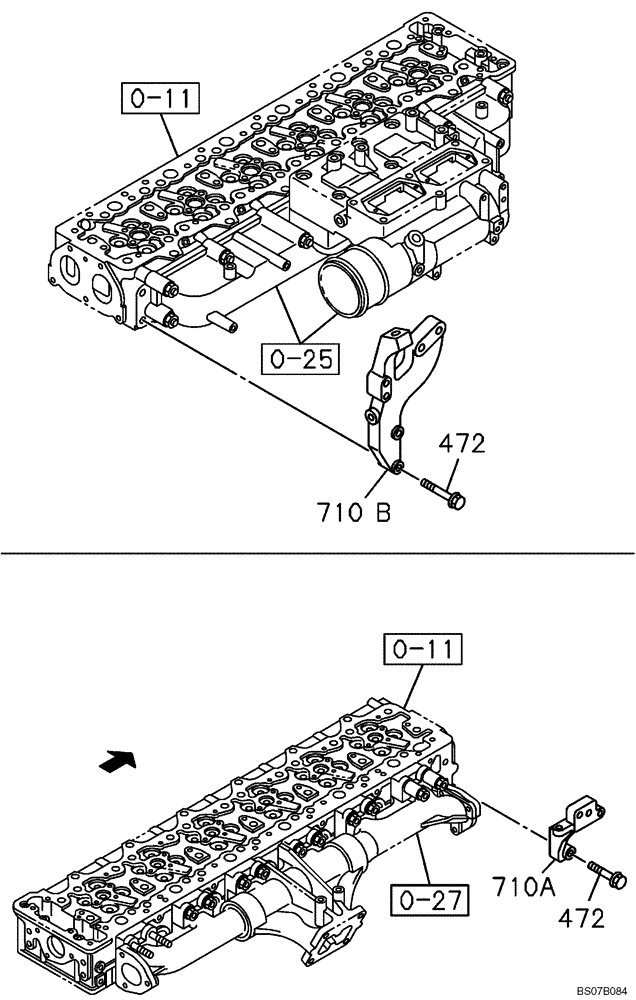

Запчасти Case CX470B (02-43) - EXHAUST GAS RECIRCULATION SYSTEM (02) - ENGINE

0-11

REF

INSTRUCTION

See Figure 02-11

1шт.

0-25

REF

INSTRUCTION

See Figure 02-22, 02-23

1шт.

0-27

REF

INSTRUCTION

See Figure 02-24

1шт.

472

87597676

BOLT

M12 x 45

4шт.

710a

87605838

BRACKET

1шт.

710b

87605857

BRACKET

1шт.
