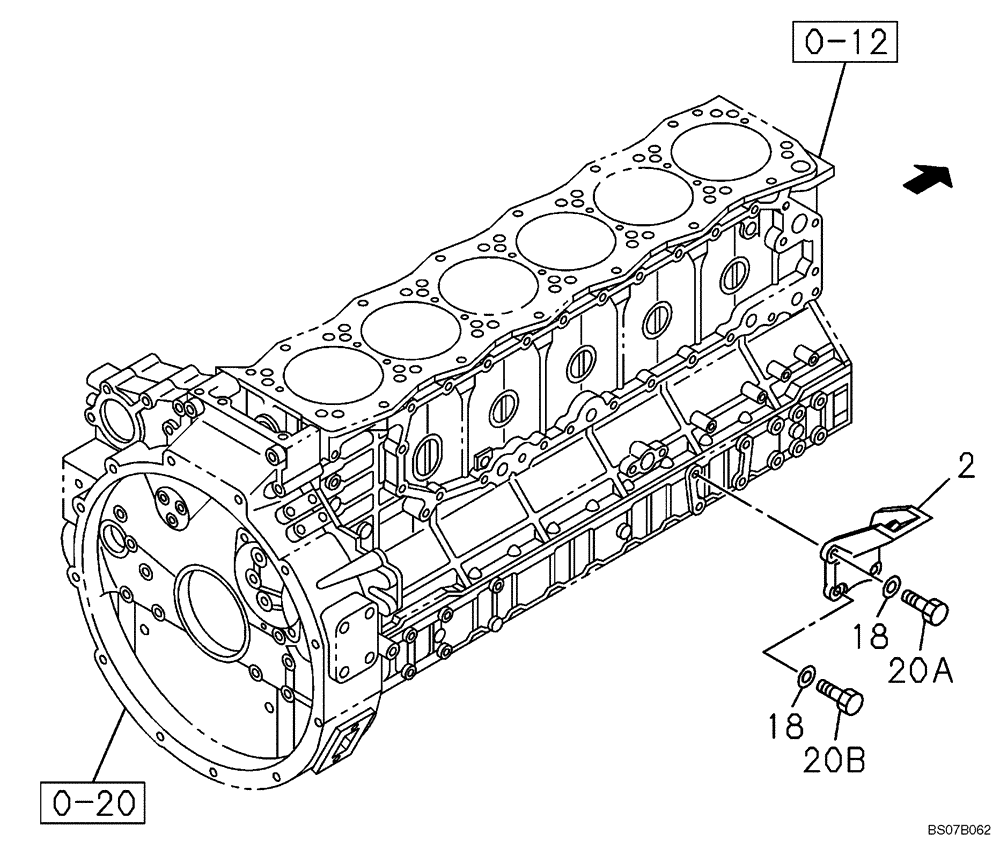

Запчасти Case CX470B (02-21) - ENGINE MOUNTING (02) - ENGINE

0-12

REF

INSTRUCTION

See Figure 02-13

1шт.

0-20

REF

INSTRUCTION

See Figure 02-18

1шт.

2

76591898

BRACKET

2шт.

18

76591834

WASHER

8шт.

20a

76591826

BOLT

M12 x 28.5

4шт.

20b

76591827

BOLT,Hex, M12 x 24mm

M12 x 24

4шт.
