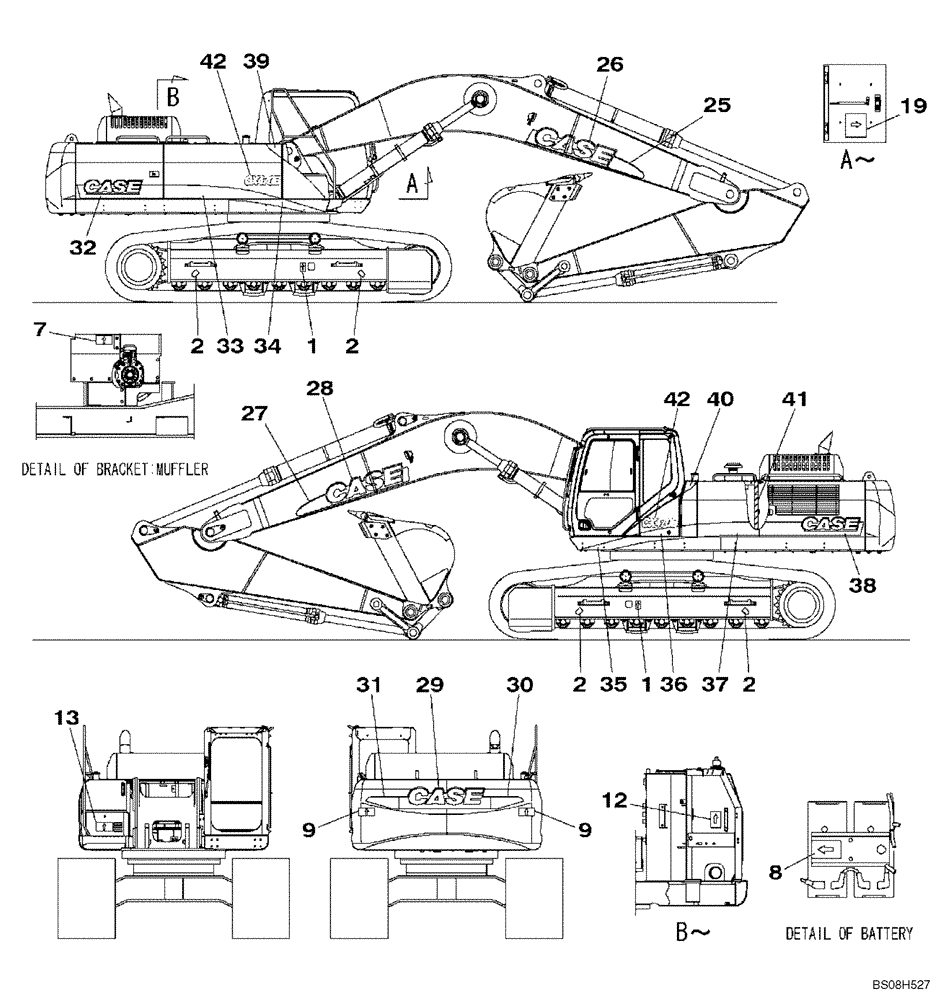

Запчасти Case CX470B (09-58) - DECALS (09) - CHASSIS

1

167327A1

WARNING DECAL

2шт.

2

H7947565

DECAL

4шт.

7

KHP1535

WARNING DECAL

2шт.

8

KHP1536

WARNING DECAL

ARROW

1шт.

9

KHP1532

WARNING DECAL

2шт.

12

167328A1

DECAL

ARROW

1шт.

13

167324A1

WARNING DECAL

1шт.

19

KTP10770

DECAL

ARROW

1шт.

25

KSP0884

DECAL

CASE logo; Right Hand Side Of Boom

1шт.

26

KSP0885

DECAL

CASE logo; Right Hand Side Of Boom

1шт.

27

KSP0890

DECAL

CASE logo; Left Hand Side Of Boom

1шт.

28

KSP0891

DECAL

CASE logo; Left Hand Side Of Boom

1шт.

29

KRP12480

DECAL

CASE logo; Rear Of Machine

1шт.

30

KBP11400

DECAL

Right Rear

1шт.

31

KBP11410

DECAL

Left Rear

1шт.

32

KTP10790

DECAL

CASE logo; Right Hand Side of Machine

1шт.

33

KTP10800

DECAL

Stripe, Right Hand Side of Machine

1шт.

34

KSP11090

DECAL

Stripe, Right Hand Side of Machine

1шт.

35

KSP11100

DECAL

Stripe, Left Hand Side of Machine

1шт.

36

KBP11360

DECAL

Stripe, Left Hand Side of Machine

1шт.

37

KTP10810

DECAL

Stripe, Left Hand Side of Machine

1шт.

38

KTP10820

DECAL

CASE logo; Left Hand Side of Machine

1шт.

39

KHP12870

DECAL

1шт.

40

KHP12880

DECAL

1шт.

41

162939A1

DECAL

1шт.

42

KTP11040

DECAL

DECAL, Model Number

2шт.

42

84573954

DECAL

CX470B - New Look, Start Year: 01-NOV-11

2шт.
