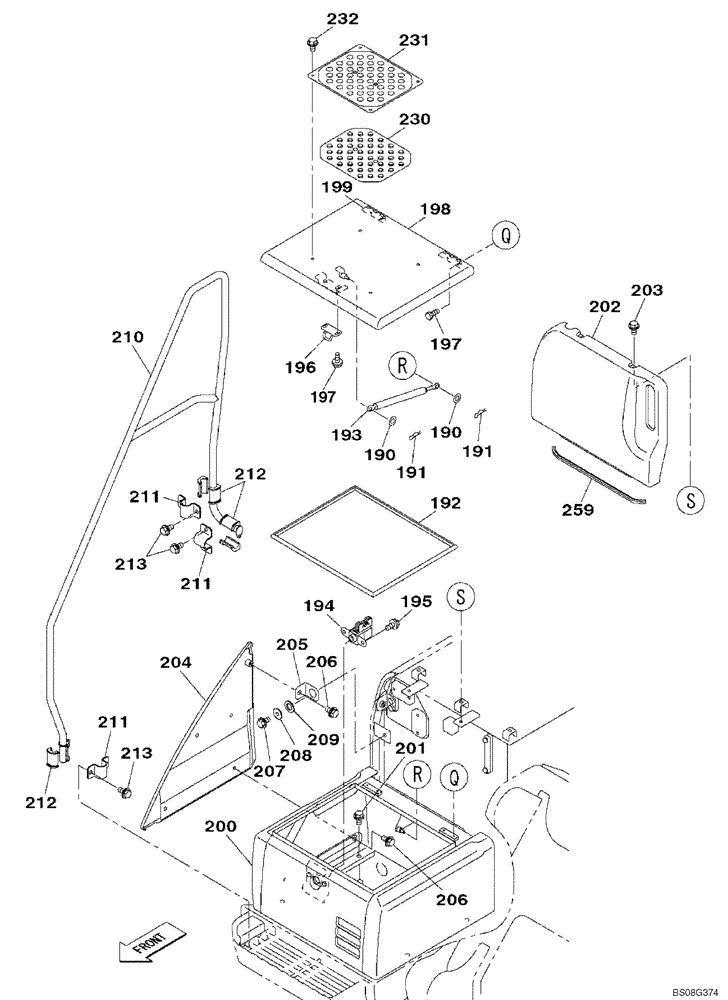

Запчасти Case CX470B (09-16) - STORAGE BOX - INSULATION (09) - CHASSIS

KRN12340DM

COVER

Incl. 190 - 200

1шт.

190

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

191

153077A1

COTTER PIN

2шт.

192

KTN1391

SEAL, RUBBER

RUBBER SEAL

1шт.

193

KHN12750

GAS STRUT

1шт.

194

KHN12730

LOCK

1шт.

195

166351A1

BOLT,Sems, M10 x 20mm

M10 x 20

2шт.

196

KHN12740

SUPPORT

1шт.

197

KAN2771

BOLT,Spcl

6шт.

198

KRN12360G1

COVER

Incl 199

1шт.

199

KHN3390

HINGE

2шт.

200

KRN12350G1

COVER

1шт.

201

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

202

KRN12370

COVER

1шт.

203

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

204

KHN12710

COVER

1шт.

205

KHN12720

SUPPORT

1шт.

206

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

207

166352A1

BOLT

M12 x 30

1шт.

208

162409A1

WASHER

1шт.

209

KHN2061

WASHER

1шт.

210

KHN12681B1

STAY

1шт.

211

KHN12690

COLLAR

3шт.

212

KHN12700

COLLAR

6шт.

213

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

230

KHN10940

RUBBER PAD

2шт.

231

KHN13510

COVER

2шт.

232

KHN13540

BOLT,Spcl

8шт.

259

KRN12790

SEAL PROTECTION

1шт.
