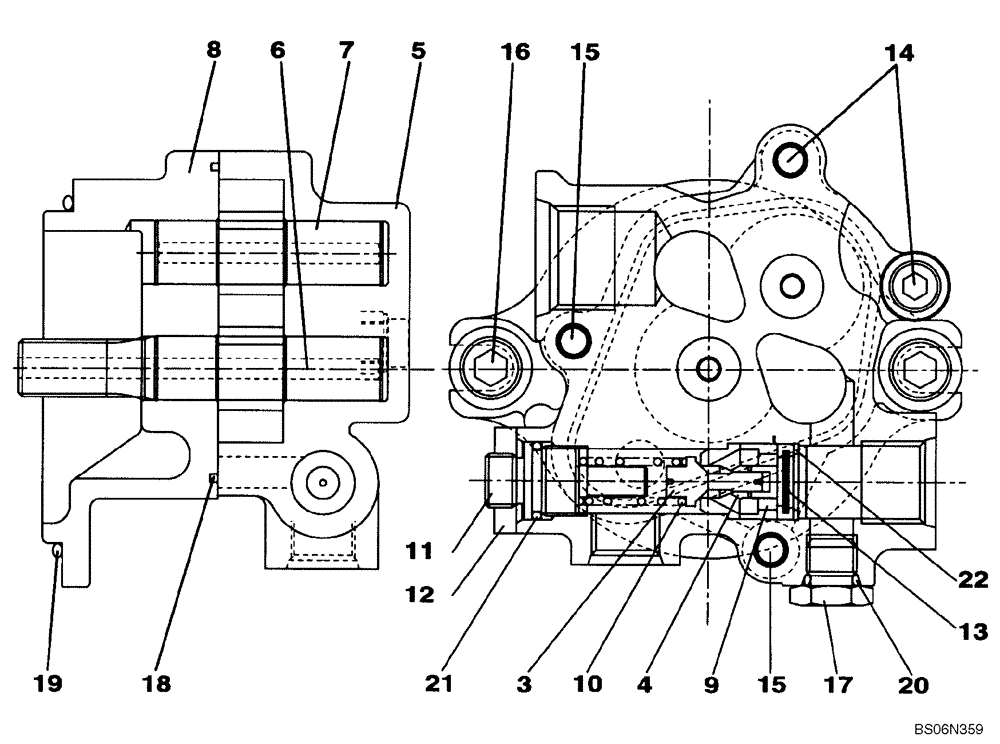

Запчасти Case CX470B (08-92) - HIGH PRESSURE PUMP - PUMP, PILOT CONTROL (08) - HYDRAULICS

KTJ11640

HYDRAULIC PUMP

Includes All Parts On Figure 08-89 - 08-94

1шт.

KTJ11640R

REMAN-HYD PUMP

CX470B CRAWLER EXCAVATOR TIER 3 (NA), PILOT CONTROL (9/08-)

1шт.

KTJ11640C

CORE-HYDRAULIC PUMP

Return Number

1шт.

LJ014890

HYDRAULIC PUMP

Incl. 2 - 22

1шт.

LW00457

HYDRAULIC PUMP

Incl. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

Poppet

1шт.

4

NSS

NOT SOLD SEPARAT

Seat

1шт.

5

NSS

NOT SOLD SEPARAT

Case, Gear

1шт.

6

NSS

NOT SOLD SEPARAT

Gear

1шт.

7

NSS

NOT SOLD SEPARAT

Gear

1шт.

8

NSS

NOT SOLD SEPARAT

Case

1шт.

9

LE01175

RING

1шт.

10

LG00536

SPRING

1шт.

11

LF00043

ADJUSTER

1шт.

12

163662A1

LOCK NUT

1шт.

13

163663A1

FILTER

1шт.

14

LA00593

BOLT,Hex Skt, M8 x 50mm, Cl 12.9

2шт.

15

LA00594

BOLT,Hex Skt, M8 x 65mm, Cl 12.9

2шт.

16

LA00692

BOLT,Hex Skt Hd

4шт.

17

155496A1

PLUG

1шт.

18

163667A1

SEALING RING

1шт.

19

LE013530

O-RING

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

21

154483A1

O-RING

1шт.

22

163668A1

RING, LOCKING

RING, LOCK

1шт.
