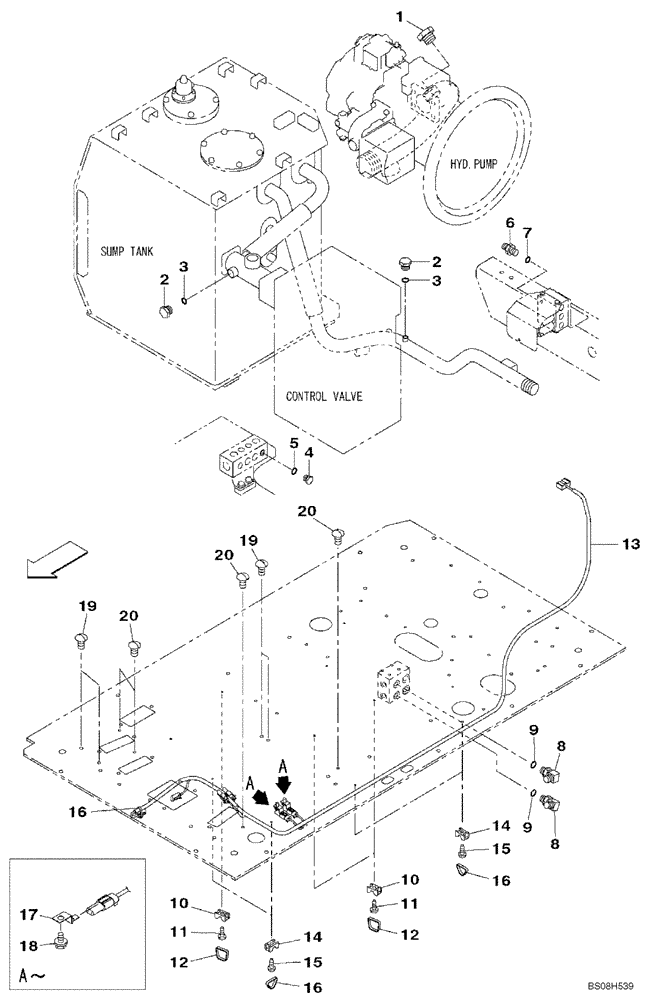

Запчасти Case CX470B (08-67) - PLUG - HYDRAULIC PUMP & TANK (08) - HYDRAULICS

1

162335A1

PLUG

1шт.

2

152924A1

PLUG

2шт.

3

154503A1

O-RING

1шт.

4

159002A1

PLUG

Incl. 5

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 9

2шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

10

150860A1

COLLAR

3шт.

11

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

3шт.

12

150496A1

MOUNTING CLIP

250mm

3шт.

13

KHR15060

WIRE HARNESS

1шт.

14

150860A1

COLLAR

4шт.

15

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

4шт.

16

150496A1

MOUNTING CLIP

250mm

5шт.

17

158962A1

CLIP

2шт.

18

166345A1

BOLT

M8 X 16

2шт.

19

KHJ15060

CAP

M10

4шт.

20

KHJ15080

CAP

M8

4шт.
