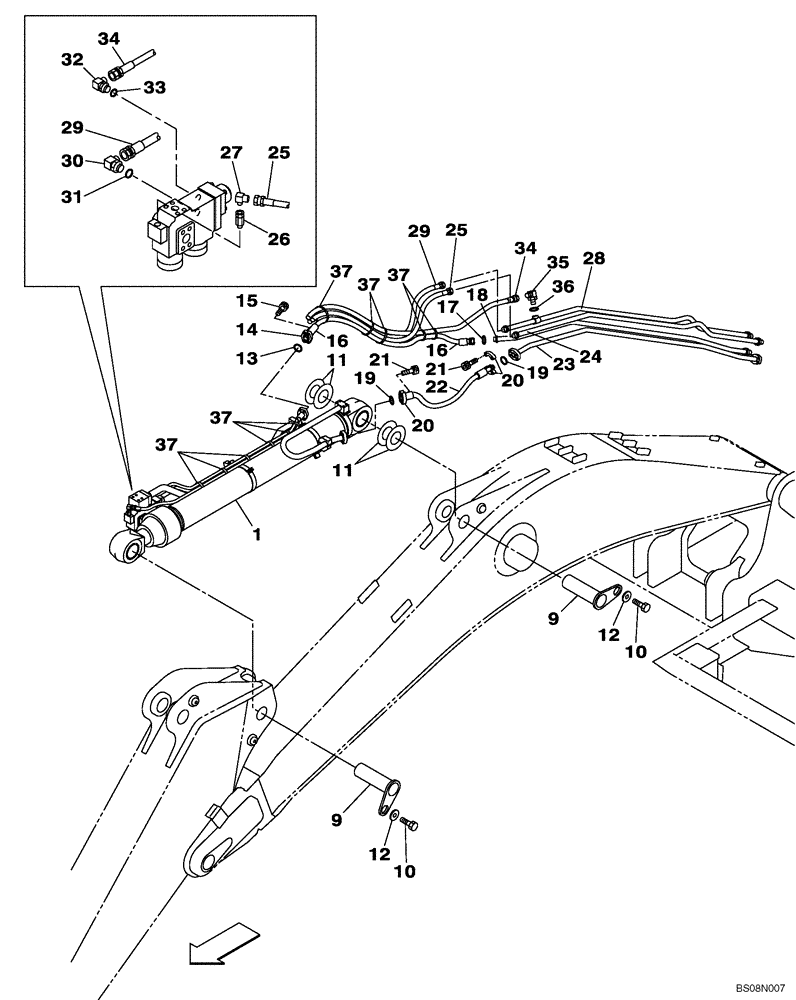

Запчасти Case CX470B (08-58) - HYDRAULIC CIRCUIT - DIPPER CYLINDER WITH SAFETY VALVE (08) - HYDRAULICS

1

KTV12741

HYDRAULIC CYLINDER

See Fig. 08-57

1шт.

1

KTV12741R

REMAN-HYD CYLINDER

CX470B CRAWLER EXCAVATOR TIER 3 (NA) (9/08-)

1шт.

1

KTV12741C

CORE-HYD CYLINDER

Return Number

1шт.

9

KTV1273

PIN

2шт.

10

102R020Y035R

BOLT

M20 x 35

2шт.

11

KMV1518

SHIM,0.6mm Thk

4шт.

12

KTV1185

SPACER

2шт.

13

164450A1

O-RING

1шт.

14

150124A1

FLANGE

2шт.

15

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

M14 x 50; 12.9

4шт.

16

KTV13270

HYDRAULIC HOSE,1400.00 mm

1шт.

17

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

18

KTV14521

HYD TUBE

1шт.

19

164450A1

O-RING

2шт.

20

150124A1

FLANGE

4шт.

21

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

M14 x 50; 12.9

8шт.

22

KTV13280

HYDRAULIC HOSE,1400.00 mm

1шт.

23

KTV14531

HYD TUBE,42.70mm OD x 2753.90mm L

1шт.

24

KTV15040

HYD TUBE

1шт.

25

KHJ20820

HYDRAULIC HOSE

1шт.

26

KHV0373

STUD

1шт.

27

157937A1

ELBOW

1шт.

28

KTV15050

HYD TUBE

1шт.

29

KHJ20830

HYDRAULIC HOSE

1шт.

30

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 31

1шт.

31

154503A1

O-RING

1шт.

32

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 33

1шт.

33

154475A1

O-RING

1шт.

34

KHJ20840

HYDRAULIC HOSE

1шт.

35

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 36

1шт.

36

154475A1

O-RING

1шт.

37

150071A1

MOUNTING CLIP

13шт.
