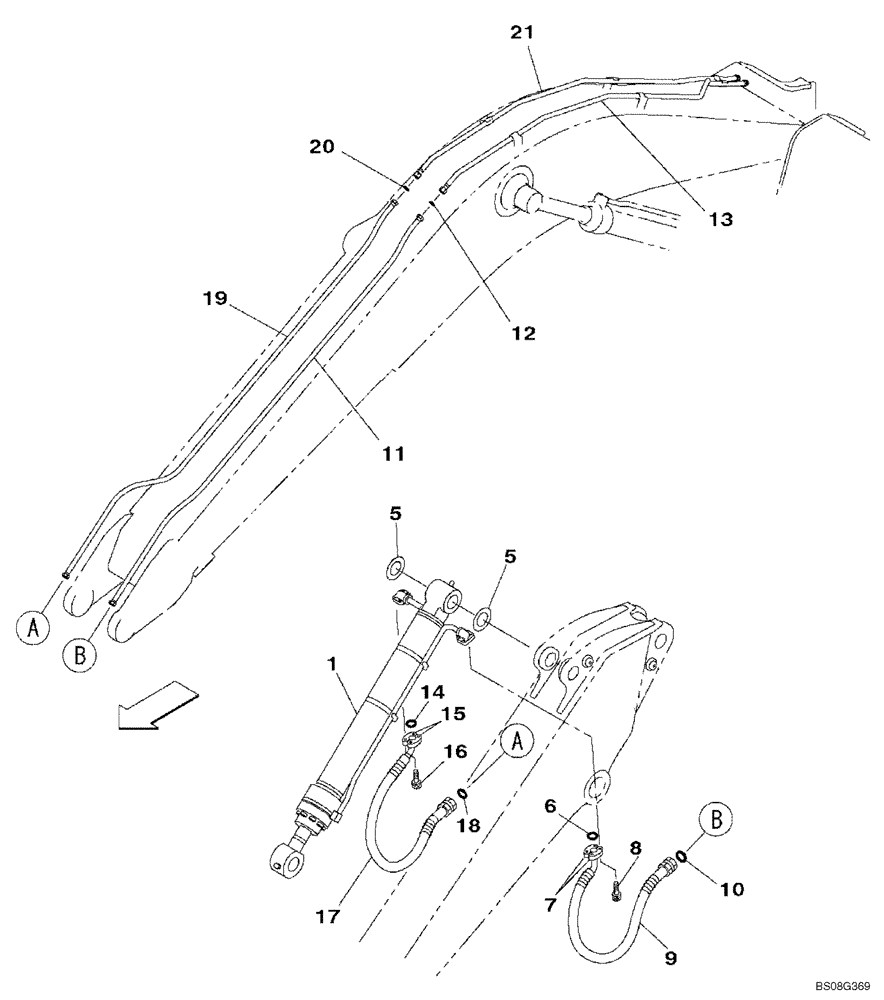

Запчасти Case CX470B (08-54) - HYDRAULICS - BUCKET - LONG (08) - HYDRAULICS

1

KTV10720

BUCKET CYLINDER

Bucket; Incl. 3; Also Includes Parts on Figure 08-98

1шт.

1

KTV10720R

REMAN-HYD CYLINDER

Reman For New P/N KTV10720

1шт.

1

KTV10720C

CORE-HYD CYLINDER

Return Number

1шт.

5

151443A1

SHIM,111mm ID x 190mm OD x 1.2mm Thk

2шт.

6

155211A1

O-RING

1шт.

7

153459A1

FLANGE

2шт.

8

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

4шт.

9

KTV14940

HYDRAULIC HOSE,2500.00 mm

1шт.

10

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

11

KTV14980Y2

HYD TUBE

1шт.

12

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

13

KTV14960Y2

HYD TUBE

1шт.

14

155211A1

O-RING

1шт.

15

153459A1

FLANGE

2шт.

16

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

4шт.

17

KTV14940

HYDRAULIC HOSE,2500.00 mm

1шт.

18

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

19

KTV14990Y2

HYD TUBE

1шт.

20

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

21

KTV14970Y2

HYD TUBE

1шт.
