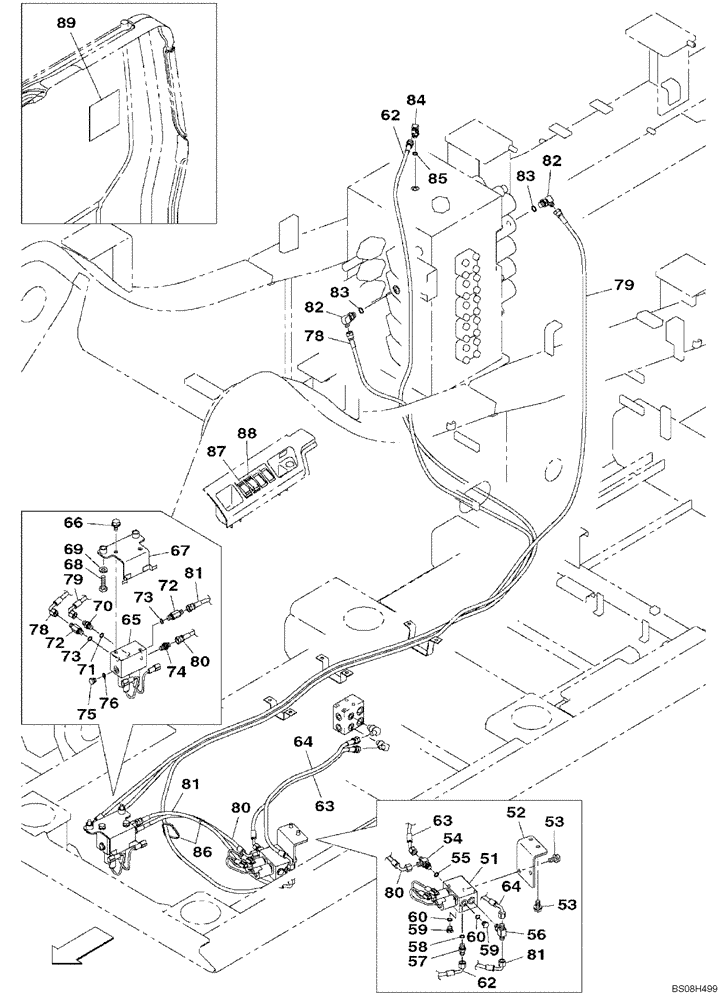

Запчасти Case CX470B (08-53) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE, TRIGGER ACTIVATED (08) - HYDRAULICS

51

KHJ1400

HYDRAULIC OIL FILTER

See Fig. 08-46

1шт.

52

KHJ14670

SUPPORT

1шт.

53

166351A1

BOLT,Sems, M10 x 20mm

M10x20

4шт.

54

159497A1

TEE

Incl. 55

1шт.

55

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

56

167321A1

TEE

1шт.

57

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 58

1шт.

58

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

59

159002A1

PLUG

Incl. 60

2шт.

60

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

62

KHJ18110

HOSE

6x4000mm

1шт.

63

KHJ14650

HYDRAULIC HOSE

6x650mm

1шт.

64

KHJ2048

HOSE,6.3mm ID x 750mm L

6x800mm

1шт.

65

KHJ14000

VALVE SECTION

See Fig. 08-46

1шт.

66

166351A1

BOLT,Sems, M10 x 20mm

M10x20

2шт.

67

KHJ14680

SUPPORT

1шт.

68

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

69

150409A1

WASHER

M10

2шт.

70

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 71

1шт.

71

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

72

162554A1

FITTING

Incl. 73

2шт.

73

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

74

161841A1

HYD CONNECTOR

1шт.

75

159002A1

PLUG

Incl. 76

1шт.

76

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

78

KHJ13650

HYDRAULIC HOSE

6x3200mm

1шт.

79

KHJ15170

HYDRAULIC HOSE

6x3500mm

1шт.

80

KHJ2180

HOSE,6.3mm ID x 500mm L

6x500mm

1шт.

81

KHJ2194

HOSE,6.3mm ID x 650mm L

6x650mm

1шт.

82

156554A1

ELBOW

Incl. 83

2шт.

83

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

84

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 85

1шт.

85

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

86

150496A1

MOUNTING CLIP

250mm

2шт.

87

KHR14450

SWITCH,Multipurpose

1шт.

88

KHR14460

SWITCH,Low Flow

1шт.

89

KHP13320

DECAL

1шт.
